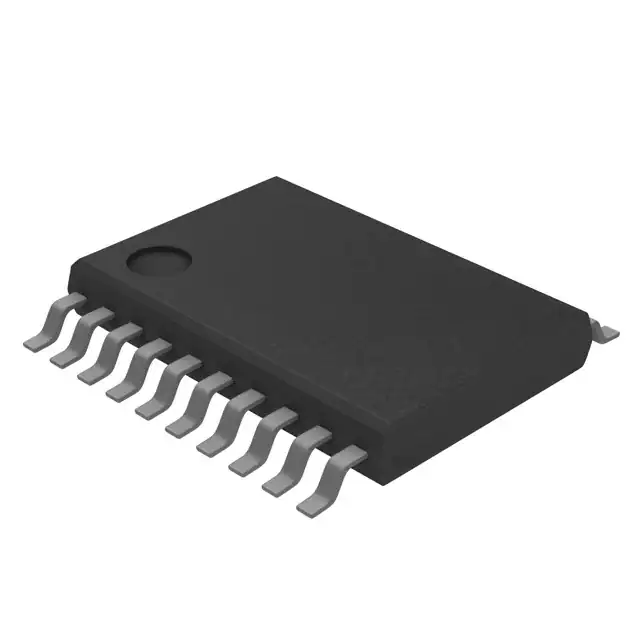

| Part Number | S9S08SG8E2CTJR | S9S08SG8E2VTJR | S9S08SG8E2MTJR | S9S08SG4E2CTJR | S9S08SG8E2CTGR | S9S08SG8E2CTJ |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. | NXP USA Inc. | Freescale Semiconductor | Freescale Semiconductor |
| Product Status | Active | Active | Active | Active | Active | Active |
| Core Processor | S08 | S08 | S08 | S08 | S08 | S08 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 40MHz | 40MHz | 40MHz | 40MHz | 40MHz | 40MHz |
| Connectivity | I²C, LINbus, SCI, SPI | I²C, LINbus, SCI, SPI | I²C, LINbus, SCI, SPI | I²C, LINbus, SCI, SPI | I²C, LINbus, SCI, SPI | I²C, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT |
| Number of I/O | 16 | 16 | 16 | 16 | 12 | 16 |
| Program Memory Size | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 4KB (4K x 8) | 8KB (8K x 8) | 8KB (8K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - |
| RAM Size | 512 x 8 | 512 x 8 | 512 x 8 | 256 x 8 | 512 x 8 | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Data Converters | A/D 12x10b | A/D 12x10b | A/D 12x10b | A/D 12x10b | A/D 8x10b | A/D 12x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP | 20-TSSOP | 20-TSSOP | 20-TSSOP | 16-TSSOP | 20-TSSOP |
