Please send RFQ , we will respond immediately.

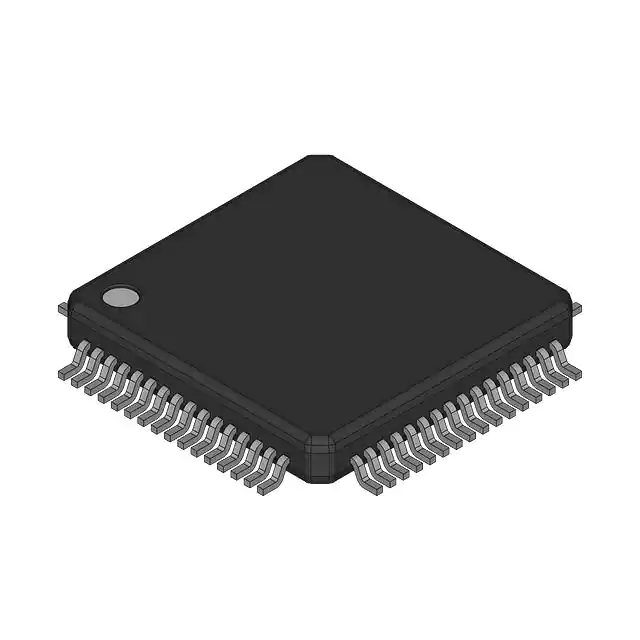

| Part Number | S9S08RN32W1MLH | S9S08RNA32W1MLH | S9S08RN32W1MLC | S9S08RN32W1MLF |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active |
| Core Processor | - | S08 | S08 | S08 |
| Core Size | - | 8-Bit | 8-Bit | 8-Bit |
| Speed | - | 20MHz | 20MHz | 20MHz |
| Connectivity | - | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART | I²C, LINbus, SPI, UART/USART |
| Peripherals | - | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT |
| Number of I/O | - | 55 | 26 | 39 |
| Program Memory Size | - | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) |
| Program Memory Type | - | Flash | Flash | Flash |
| EEPROM Size | - | 256 x 8 | 256 x 8 | 256 x 8 |
| RAM Size | - | 4K x 8 | 4K x 8 | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | - | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Data Converters | - | A/D 16x12b | A/D 16x12b | A/D 16x12b |
| Oscillator Type | - | Internal | Internal | Internal |
| Operating Temperature | - | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | 64-LQFP | 32-LQFP | 48-LQFP |
| Supplier Device Package | - | 64-LQFP (10x10) | 32-LQFP (7x7) | 48-LQFP (7x7) |
