| Part Number | S912ZVML31F1WKF | S912ZVML31F1WKH | S912ZVML31F1WKFR | S912ZVML31F1MKF | S912ZVML31F1VKF |
|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Core Processor | S12Z | S12Z | S12Z | S12Z | S12Z |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 40MHz | 40MHz | 40MHz | 50MHz | 50MHz |
| Connectivity | LINbus, SCI | LINbus, SCI, SPI | LINbus, SCI | LINbus, SCI | LINbus, SCI |
| Peripherals | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT |
| Number of I/O | 31 | 31 | 31 | 31 | 31 |
| Program Memory Size | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 128 x 8 | 128 x 8 | 128 x 8 | 128 x 8 | 128 x 8 |
| RAM Size | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 40V | 3.5V ~ 40V | 3.5V ~ 40V | 3.5V ~ 40V | 3.5V ~ 40V |
| Data Converters | A/D 4x12b | A/D 9x12b | A/D 4x12b | A/D 4x12b | A/D 4x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 150°C (TA) | -40°C ~ 150°C (TA) | -40°C ~ 150°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

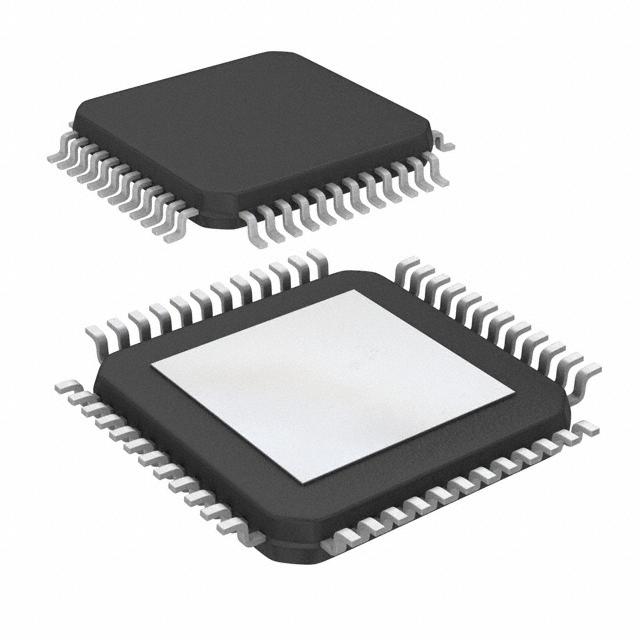

| Package / Case | 48-LQFP Exposed Pad | 64-LQFP Exposed Pad | 48-LQFP Exposed Pad | 48-LQFP Exposed Pad | 48-LQFP Exposed Pad |
| Supplier Device Package | 48-LQFP-EP (7x7) | 64-HLQFP (10x10) | 48-LQFP-EP (7x7) | 48-LQFP-EP (7x7) | 48-LQFP-EP (7x7) |
