| Part Number | S912ZVMC12F1WKH | S912ZVMC12F3WKH | S912ZVML12F1WKH | S912ZVMC12F2WKH | S912ZVMC12F1MKH | S912ZVMC12F1VKH |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | S12Z | S12Z | S12Z | S12Z | S12Z | S12Z |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz |
| Connectivity | CANbus, SCI, SPI | CANbus, SCI, SPI | LINbus, SCI, SPI | CANbus, SCI, SPI | CANbus, SCI, SPI | CANbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT |
| Number of I/O | 31 | 31 | 31 | 31 | 31 | 31 |
| Program Memory Size | 128KB (128K x 8) | 128KB (128K x 8) | 128KB (128K x 8) | 128KB (128K x 8) | 128KB (128K x 8) | 128KB (128K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 512 x 8 | 512 x 8 | 512 x 8 | 512 x 8 | 512 x 8 | 512 x 8 |
| RAM Size | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 40V | 3.5V ~ 40V | 3.5V ~ 40V | 3.5V ~ 40V | 3.5V ~ 40V | 3.5V ~ 40V |
| Data Converters | A/D 9x12b | A/D 9x12b | A/D 9x12b | A/D 9x12b | A/D 9x12b | A/D 9x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 150°C (TA) | -40°C ~ 150°C (TA) | -40°C ~ 150°C (TA) | -40°C ~ 150°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

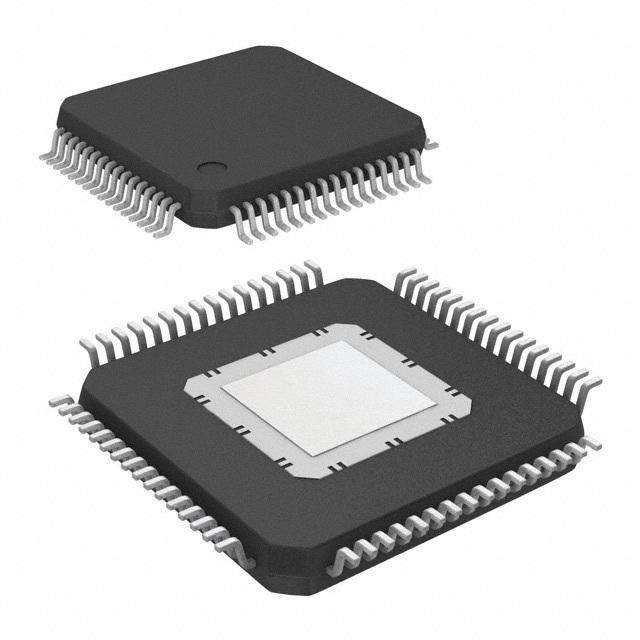

| Package / Case | 64-LQFP Exposed Pad | 64-LQFP Exposed Pad | 64-LQFP Exposed Pad | 64-LQFP Exposed Pad | 64-LQFP Exposed Pad | 64-LQFP Exposed Pad |
| Supplier Device Package | 64-HLQFP (10x10) | 64-HLQFP (10x10) | 64-HLQFP (10x10) | 64-HLQFP (10x10) | 64-HLQFP (10x10) | 64-HLQFP (10x10) |
