| Part Number | S912XHY256F0VLMR | S912XHY256F0VLLR | S912XHY256F0VLM |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active |
| Core Processor | HCS12X | HCS12X | HCS12X |
| Core Size | 16-Bit | 16-Bit | 16-Bit |
| Speed | 40MHz | 40MHz | 40MHz |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, LINbus, SCI, SPI | CANbus, EBI/EMI, I²C, IrDA, LINbus, SCI, SPI | CANbus, EBI/EMI, I²C, IrDA, LINbus, SCI, SPI |
| Peripherals | LCD, Motor control PWM, POR, PWM, WDT | LCD, Motor control PWM, POR, PWM, WDT | LCD, Motor control PWM, POR, PWM, WDT |
| Number of I/O | 88 | 76 | 88 |
| Program Memory Size | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) |
| Program Memory Type | Flash | Flash | Flash |
| EEPROM Size | 8K x 8 | 8K x 8 | 8K x 8 |
| RAM Size | 12K x 8 | 12K x 8 | 12K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Data Converters | A/D 12x10b | A/D 8x10b | A/D 12x10b |
| Oscillator Type | External | External | External |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

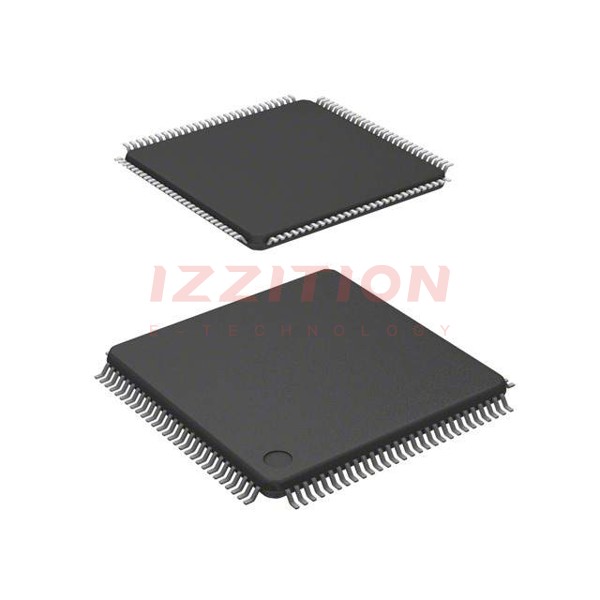

| Package / Case | 112-LQFP | 100-LQFP | 112-LQFP |
| Supplier Device Package | 112-LQFP (20x20) | 100-LQFP (14x14) | 112-LQFP (20x20) |
