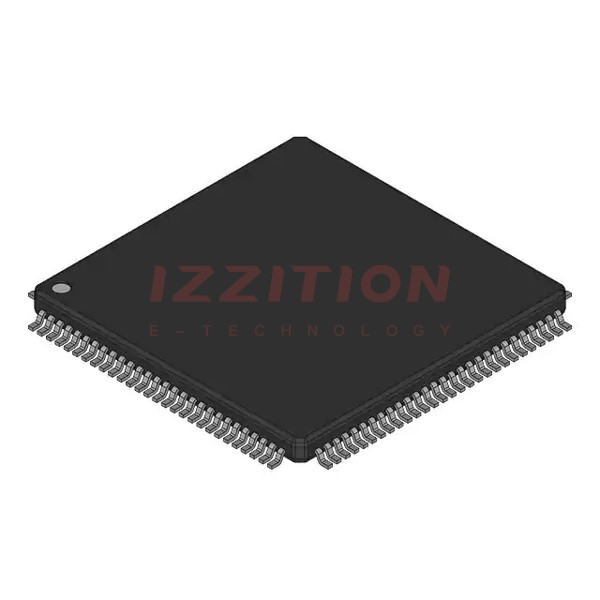

| Part Number | S912XET256J2CAL | S912XET256J2CALR | S912XET256J2VAL | S912XET256J2CAA | S912XET256J2CAG |
|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Core Processor | HCS12X | HCS12X | HCS12X | HCS12X | - |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | - |
| Speed | 50MHz | 50MHz | 50MHz | 50MHz | - |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, SCI, SPI | CANbus, EBI/EMI, I²C, IrDA, SCI, SPI | CANbus, EBI/EMI, I²C, IrDA, SCI, SPI | CANbus, EBI/EMI, I²C, IrDA, SCI, SPI | - |
| Peripherals | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | - |
| Number of I/O | 91 | 91 | 91 | 59 | - |
| Program Memory Size | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | - |
| Program Memory Type | Flash | Flash | Flash | Flash | - |
| EEPROM Size | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | - |
| RAM Size | 16K x 8 | 16K x 8 | 16K x 8 | 16K x 8 | - |
| Voltage - Supply (Vcc/Vdd) | 1.72V ~ 5.5V | 1.72V ~ 5.5V | 1.72V ~ 5.5V | 1.72V ~ 5.5V | - |
| Data Converters | A/D 16x12b | A/D 16x12b | A/D 16x12b | A/D 8x12b | - |
| Oscillator Type | External | External | External | External | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - |
| Package / Case | 112-LQFP | 112-LQFP | 112-LQFP | 80-QFP | - |
| Supplier Device Package | 112-LQFP (20x20) | 112-LQFP (20x20) | 112-LQFP (20x20) | 80-QFP (14x14) | - |
