Please send RFQ , we will respond immediately.

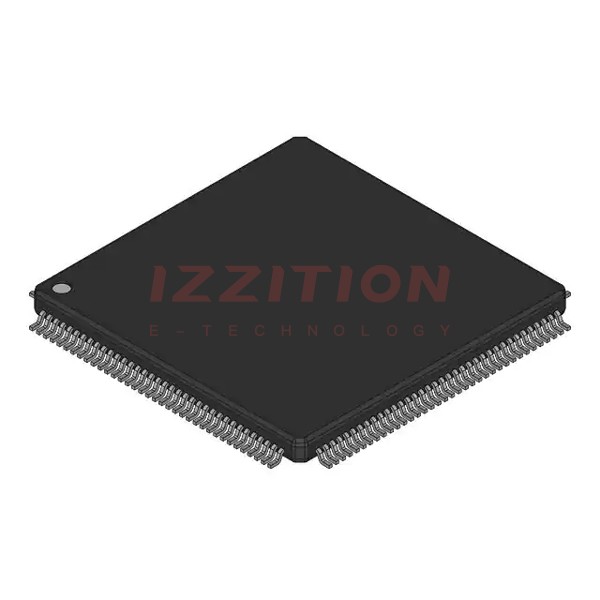

| Part Number | S912XET256J2CAG | S912XET256J2CAL | S912XET256J2VAG | S912XET256J2MAG | S912XET256J2CAGR | S912XET256J2CAA |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | Freescale Semiconductor | Freescale Semiconductor | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Core Processor | - | HCS12X | HCS12X | HCS12X | HCS12X | HCS12X |
| Core Size | - | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | - | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz |
| Connectivity | - | CANbus, EBI/EMI, I²C, IrDA, SCI, SPI | CANbus, EBI/EMI, I²C, IrDA, SCI, SPI | CANbus, EBI/EMI, I²C, IrDA, SCI, SPI | CANbus, EBI/EMI, I²C, IrDA, SCI, SPI | CANbus, EBI/EMI, I²C, IrDA, SCI, SPI |
| Peripherals | - | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT |
| Number of I/O | - | 91 | 119 | 119 | 119 | 59 |
| Program Memory Size | - | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) |
| Program Memory Type | - | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 |
| RAM Size | - | 16K x 8 | 16K x 8 | 16K x 8 | 16K x 8 | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | - | 1.72V ~ 5.5V | 1.72V ~ 5.5V | 1.72V ~ 5.5V | 1.72V ~ 5.5V | 1.72V ~ 5.5V |
| Data Converters | - | A/D 16x12b | A/D 24x12b | A/D 24x12b | A/D 24x12b | A/D 8x12b |
| Oscillator Type | - | External | External | External | External | External |
| Operating Temperature | - | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | 112-LQFP | 144-LQFP | 144-LQFP | 144-LQFP | 80-QFP |
| Supplier Device Package | - | 112-LQFP (20x20) | 144-LQFP (20x20) | 144-LQFP (20x20) | 144-LQFP (20x20) | 80-QFP (14x14) |
