| Part Number | S912XEQ384ACAL | S912XEQ384AMAL | S912XEQ384ACALR | S912XEQ384BCAL |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active |
| Core Processor | HCS12X | - | HCS12X | HCS12X |
| Core Size | 16-Bit | - | 16-Bit | 16-Bit |
| Speed | 50MHz | - | 50MHz | 50MHz |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, SCI, SPI | - | CANbus, EBI/EMI, I²C, IrDA, SCI, SPI | CANbus, EBI/EMI, I²C, IrDA, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT | - | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT |
| Number of I/O | 91 | - | 91 | 91 |
| Program Memory Size | 384KB (384K x 8) | - | 384KB (384K x 8) | 384KB (384K x 8) |
| Program Memory Type | Flash | - | Flash | Flash |
| EEPROM Size | 4K x 8 | - | 4K x 8 | 4K x 8 |
| RAM Size | 24K x 8 | - | 24K x 8 | 24K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.72V ~ 5.5V | - | 1.72V ~ 5.5V | 1.72V ~ 5.5V |
| Data Converters | A/D 16x12b | - | A/D 16x12b | A/D 16x12b |
| Oscillator Type | External | - | External | External |
| Operating Temperature | -40°C ~ 85°C (TA) | - | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount |

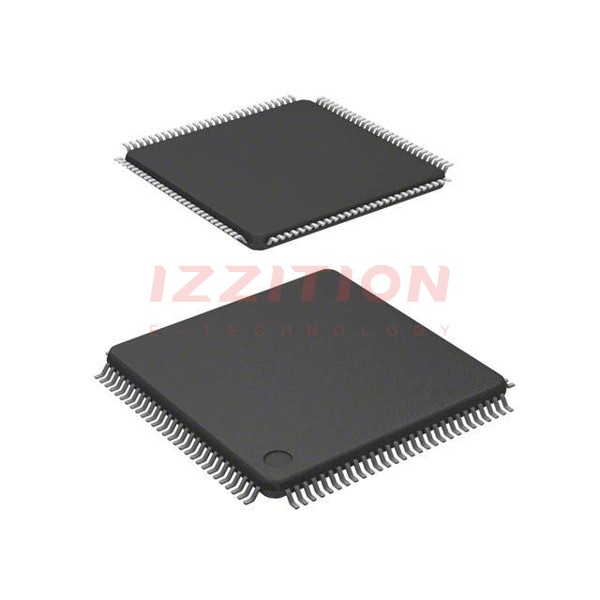

| Package / Case | 112-LQFP | - | 112-LQFP | 112-LQFP |
| Supplier Device Package | 112-LQFP (20x20) | - | 112-LQFP (20x20) | 112-LQFP (20x20) |
