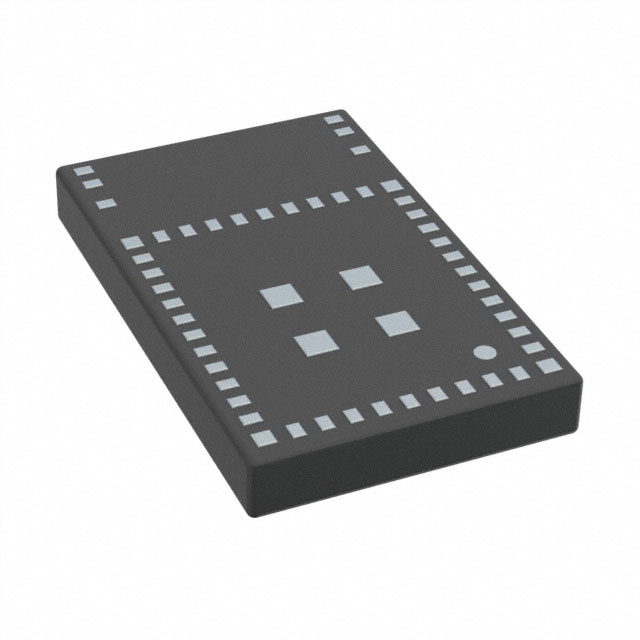

| Part Number | QN9080-001-M17Z | QN9080-001-M17AZ | QN9080-001-M17Y |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active |
| Type | TxRx + MCU | TxRx + MCU | TxRx + MCU |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v5.0 | Bluetooth v5.0 | Bluetooth v5.0 |
| Modulation | FSK | FSK | FSK |
| Frequency | 2.4GHz ~ 2.4835GHz | 2.4GHz ~ 2.4835GHz | 2.4GHz ~ 2.4835GHz |
| Data Rate (Max) | 2Mbps | 2Mbps | 2Mbps |
| Power - Output | 2dBm | 2dBm | 2dBm |
| Sensitivity | -92.7dBm | -92.7dBm | -92.7dBm |
| Memory Size | 512kB Flash, 128kB SRAM | 512kB Flash, 128kB SRAM | 512kB Flash, 128kB SRAM |
| Serial Interfaces | ADC, GPIO, I²C, SPI, UART, USART, USB | ADC, GPIO, I²C, SPI, UART, USART, USB | ADC, GPIO, I²C, SPI, UART, USART, USB |
| GPIO | 32 | 32 | 32 |
| Voltage - Supply | 1.67V ~ 3.6V | 1.67V ~ 3.6V | 1.67V ~ 3.6V |
| Current - Receiving | 4mA | 4mA | 4mA |
| Current - Transmitting | 3.5mA | 3.5mA | 3.5mA |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 54-LFLGA | 54-LFLGA | 54-LFLGA |
| Supplier Device Package | 54-LFLGA (9.7x6) | 54-LFLGA (9.7x6) | 54-LFLGA (9.7x6) |
