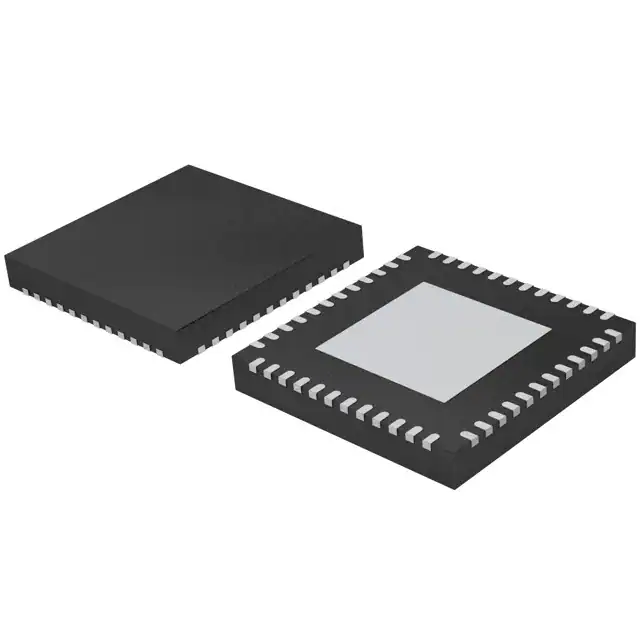

| Part Number | QN9020/DY | QN9021/DY | QN9022/DY | QN9020/EY |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active |
| Type | TxRx Only | TxRx Only | TxRx Only | TxRx + MCU |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v4.0 | Bluetooth v4.0 | Bluetooth v4.0 | Bluetooth v4.2 |
| Modulation | - | - | - | GFSK |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz ~ 2.4835GHz |
| Data Rate (Max) | - | - | - | 1Mbps |
| Power - Output | 4dBm | 4dBm | 4dBm | 4dBm |
| Sensitivity | -95dBm | -95dBm | -95dBm | -95dBm |
| Memory Size | 128kB Flash | 128kB Flash | 128kB Flash | 128kB Flash |
| Serial Interfaces | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART |
| GPIO | 31 | 31 | 31 | 31 |
| Voltage - Supply | 2.4V ~ 3.6V | 2.4V ~ 3.6V | 2.4V ~ 3.6V | 2.4V ~ 3.6V |
| Current - Receiving | 9.2mA | 9.2mA | 9.2mA | 9.25mA ~ 13.6mA |
| Current - Transmitting | 8.8mA | 8.8mA | 8.8mA | 4.3mA ~ 17.6mA |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 40-VFQFN Exposed Pad | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-HVQFN (6x6) | 32-HVQFN (5x5) | 40-HVQFN (5x5) | 48-HVQFN (6x6) |
