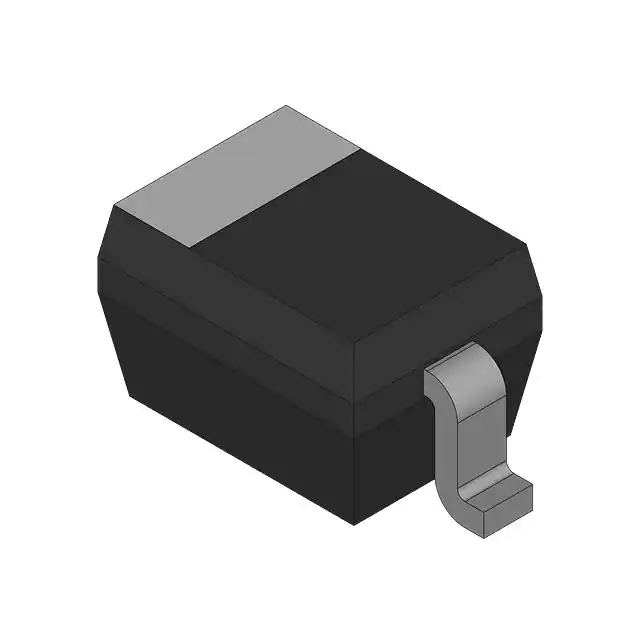

| Part Number | PZU18B1A,115 | PZU18B3A,115 | PZU18BA,115 | PZU18B2A,115 | PZU10B1A,115 | PZU11B1A,115 | PZU12B1A,115 | PZU13B1A,115 | PZU15B1A,115 | PZU16B1A,115 | PZU18B1,115 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 18 V | 18 V | 18 V | 18 V | 10 V | 11 V | 12 V | 13 V | 15 V | 16 V | 18 V |
| Tolerance | ±2% | ±2% | ±5% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Power - Max | 320 mW | 320 mW | 320 mW | 320 mW | 320 mW | 320 mW | 320 mW | 320 mW | 320 mW | 320 mW | 310 mW |
| Impedance (Max) (Zzt) | 20 Ohms | 20 Ohms | 20 Ohms | 20 Ohms | 10 Ohms | 10 Ohms | 10 Ohms | 10 Ohms | 15 Ohms | 20 Ohms | 20 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 13 V | 50 nA @ 13 V | 50 nA @ 13 V | 50 nA @ 13 V | 100 nA @ 7 V | 100 nA @ 8 V | 100 nA @ 9 V | 100 nA @ 10 V | 50 nA @ 11 V | 50 nA @ 12 V | 50 nA @ 13 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA | 1.1 V @ 100 mA |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -65°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | SC-90, SOD-323F |
| Supplier Device Package | SOD-323 | SOD-323 | SOD-323 | SOD-323 | SOD-323 | SOD-323 | SOD-323 | SOD-323 | SOD-323 | SOD-323 | SOD-323F |
