Please send RFQ , we will respond immediately.
| Part Number | PZU14DB2,115 | PZU15DB2,115 | PZU16DB2,115 | PZU18DB2,115 | PZU24DB2,115 | PZU10DB2,115 | PZU11DB2,115 | PZU12DB2,115 | PZU13DB2,115 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete | Active | Obsolete |
| Configuration | 2 Independent | 2 Independent | 2 Independent | 2 Independent | 2 Independent | 2 Independent | 2 Independent | 2 Independent | 2 Independent |
| Voltage - Zener (Nom) (Vz) | 14 V | 15 V | 16 V | 18 V | 24 V | 10 V | 11 V | 12 V | 13 V |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Power - Max | 250 mW | 250 mW | 250 mW | 250 mW | 250 mW | 250 mW | 250 mW | 250 mW | 250 mW |
| Impedance (Max) (Zzt) | 10 Ohms | 15 Ohms | 20 Ohms | 20 Ohms | 30 Ohms | 10 Ohms | 10 Ohms | 10 Ohms | 10 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 11 V | 50 nA @ 11 V | 50 nA @ 12 V | 50 nA @ 13 V | 50 nA @ 19 V | 100 nA @ 7 V | 100 nA @ 8 V | 100 nA @ 9 V | 100 nA @ 10 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

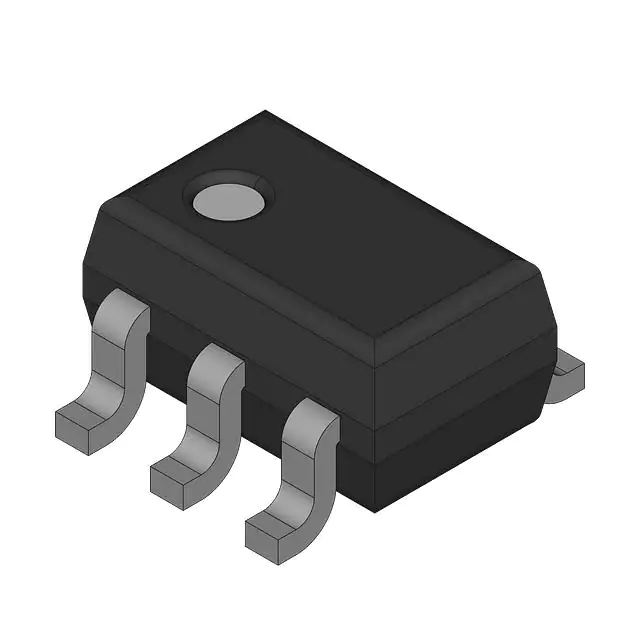

| Package / Case | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | 5-TSSOP | 5-TSSOP | 5-TSSOP | 5-TSSOP | 5-TSSOP | 5-TSSOP | 5-TSSOP | 5-TSSOP | 5-TSSOP |
