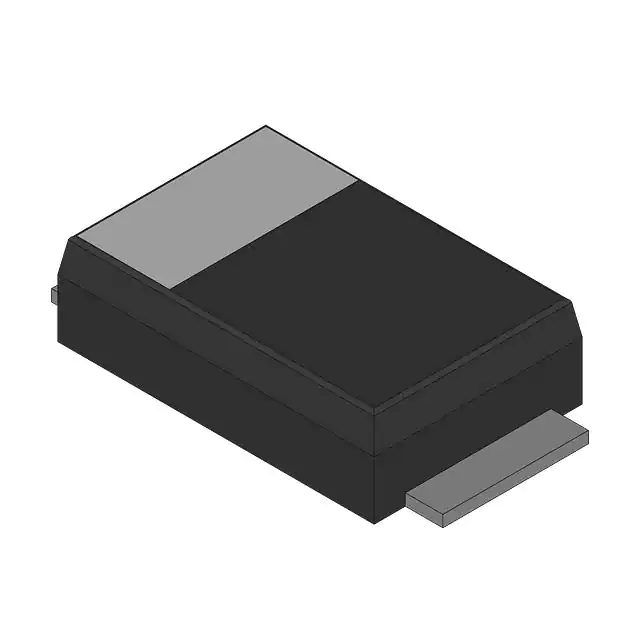

| Part Number | PTVS22VP1UTP,115 | PTVS24VP1UTP,115 | PTVS26VP1UTP,115 | PTVS28VP1UTP,115 | PTVS12VP1UTP,115 | PTVS20VP1UTP,115 | PTVS22VP1UP,115 |
|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 22V | 24V | 26V | 28V | 12V | 20V | 22V |
| Voltage - Breakdown (Min) | 24.4V | 26.7V | 28.9V | 31.1V | 13.3V | 22.2V | 24.4V |
| Voltage - Clamping (Max) @ Ipp | 35.5V | 38.9V | 42.1V | 45.4V | 19.9V | 32.4V | 35.5V |
| Current - Peak Pulse (10/1000µs) | 16.9A | 15.4A | 14.3A | 13.2A | 30.2A | 18.5A | 16.9A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 185°C (TA) | -55°C ~ 185°C (TA) | -55°C ~ 185°C (TA) | -55°C ~ 185°C (TA) | -55°C ~ 185°C (TA) | -55°C ~ 185°C (TA) | -55°C ~ 150°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-128 | SOD-128 | SOD-128 | SOD-128 | SOD-128 | SOD-128 | SOD-128 |
| Supplier Device Package | SOD-128/CFP5 | SOD-128/CFP5 | SOD-128/CFP5 | SOD-128/CFP5 | SOD-128/CFP5 | SOD-128/CFP5 | SOD-128/CFP5 |
