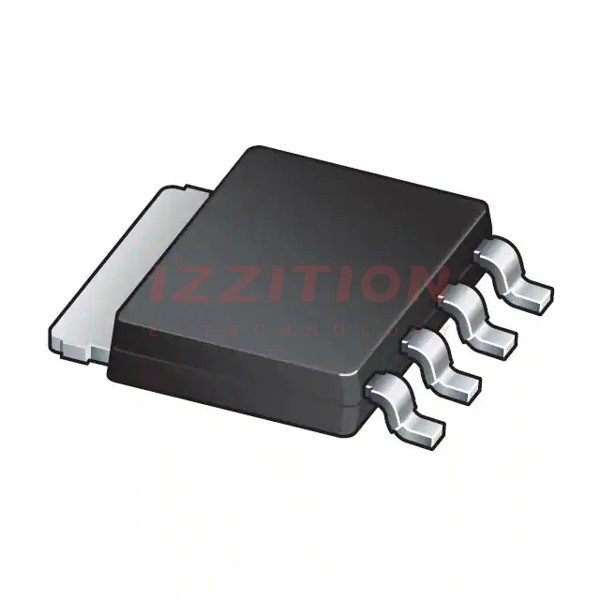

| Part Number | PSMN8R0-30YL,115 | PSMN8R0-30YLC115 | PSMN9R0-30YL,115 | PSMN8R0-30YLC,115 | PSMN4R0-30YL,115 | PSMN5R0-30YL,115 | PSMN6R0-30YL,115 | PSMN7R0-30YL,115 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 62A (Tc) | 54A (Tc) | 61A (Tc) | 54A (Tc) | 100A (Tc) | 91A (Tc) | 79A (Tc) | 76A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 8.3mOhm @ 15A, 10V | 7.9mOhm @ 15A, 10V | 8mOhm @ 15A, 10V | 7.9mOhm @ 15A, 10V | 4mOhm @ 15A, 10V | 5mOhm @ 15A, 10V | 6mOhm @ 15A, 10V | 7mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.15V @ 1mA | 1.95V @ 1mA | 2.15V @ 1mA | 1.95V @ 1mA | 2.15V @ 1mA | 2.15V @ 1mA | 2.15V @ 1mA | 2.15V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 18.3 nC @ 10 V | 15 nC @ 10 V | 17.8 nC @ 10 V | 15 nC @ 10 V | 36.6 nC @ 10 V | 29 nC @ 10 V | 24 nC @ 10 V | 22 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1005 pF @ 15 V | 848 pF @ 15 V | 1006 pF @ 12 V | 848 pF @ 15 V | 2090 pF @ 12 V | 1760 pF @ 12 V | 1425 pF @ 12 V | 1270 pF @ 12 V |
| FET Feature | - | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 56W (Tc) | 42W (Tc) | 46W (Tc) | 42W (Tc) | 69W (Tc) | 61W (Tc) | 55W (Tc) | 51W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | LFPAK56, Power-SO8 | LFPAK56, Power-SO8 | LFPAK56, Power-SO8 | LFPAK56, Power-SO8 | LFPAK56, Power-SO8 | LFPAK56, Power-SO8 | LFPAK56, Power-SO8 | LFPAK56, Power-SO8 |
| Package / Case | SC-100, SOT-669 | SC-100, SOT-669 | SC-100, SOT-669 | SC-100, SOT-669 | SC-100, SOT-669 | SC-100, SOT-669 | SC-100, SOT-669 | SC-100, SOT-669 |
