Please send RFQ , we will respond immediately.

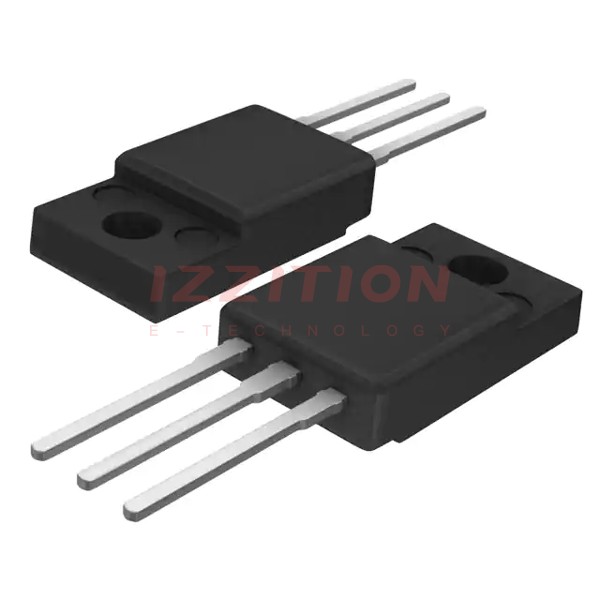

| Part Number | PSMN7R0-100XS,127 | PSMN5R0-100XS,127 | PSMN7R0-100ES,127 | PSMN7R0-100PS,127 |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 55A (Tc) | 67.5A (Tc) | 100A (Tc) | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 6.8mOhm @ 15A, 10V | 5mOhm @ 15A, 10V | 6.8mOhm @ 15A, 10V | 12mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA | 4V @ 1mA | 4V @ 1mA | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 121 nC @ 10 V | 153 nC @ 10 V | 125 nC @ 10 V | 125 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6686 pF @ 50 V | 9900 pF @ 50 V | 6686 pF @ 50 V | 6686 pF @ 50 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 57.7W (Tc) | 63.8W (Tc) | 269W (Tc) | 269W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | - | -55°C ~ 175°C (TJ) | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220F | TO-220F | I2PAK | TO-220AB |
| Package / Case | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-220-3 |
