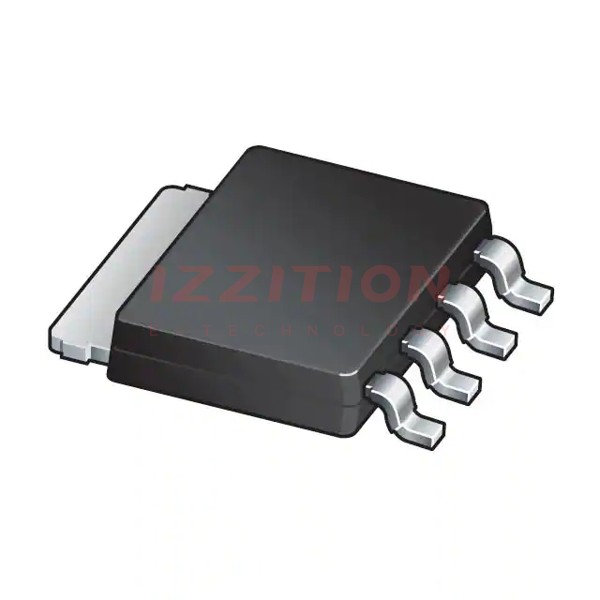

| Part Number | PSMN3R7-25YLC,115 | PSMN1R7-25YLC,115 | PSMN3R2-25YLC,115 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V | 25 V | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 97A (Tc) | 100A (Tc) | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.9mOhm @ 20A, 10V | 1.9mOhm @ 25A, 10V | 3.4mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 1.95V @ 1mA | 1.95V @ 1mA | 1.95V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 21.6 nC @ 10 V | 59 nC @ 10 V | 30 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1585 pF @ 12 V | 3735 pF @ 12 V | 1781 pF @ 12 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 64W (Tc) | 164W (Tc) | 79W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | LFPAK56, Power-SO8 | LFPAK56, Power-SO8 | LFPAK56, Power-SO8 |
| Package / Case | SC-100, SOT-669 | SC-100, SOT-669 | SC-100, SOT-669 |
