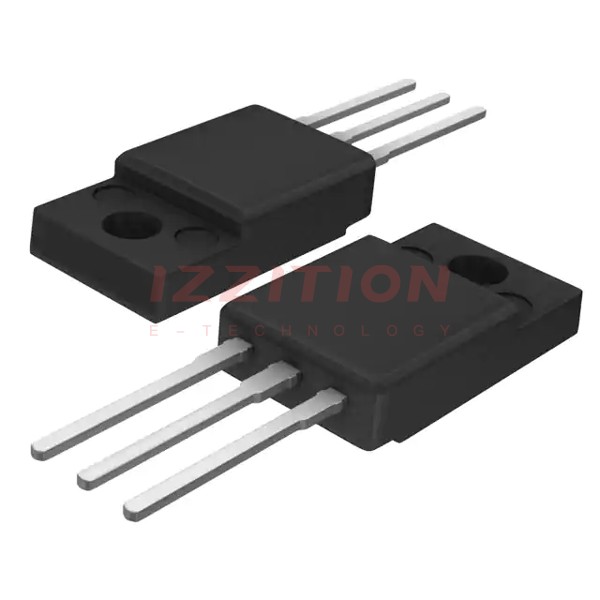

| Part Number | PSMN027-100XS,127 | PSMN027-100PS,127 |
|---|---|---|
| Manufacturer | NXP USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 23.4A (Tc) | 37A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 26.8mOhm @ 5A, 10V | 26.8mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 30 nC @ 10 V | 30 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1624 pF @ 50 V | 1624 pF @ 50 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 41.1W (Tc) | 103W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | TO-220F | TO-220AB |
| Package / Case | TO-220-3 Full Pack, Isolated Tab | TO-220-3 |
