NXP USA Inc.-PSMN004-55W,127 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	55 V
Current - Continuous Drain (Id) @ 25°C:	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	4.2mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	226 nC @ 5 V
Vgs (Max):	±15V
Input Capacitance (Ciss) (Max) @ Vds:	13000 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	300W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-247

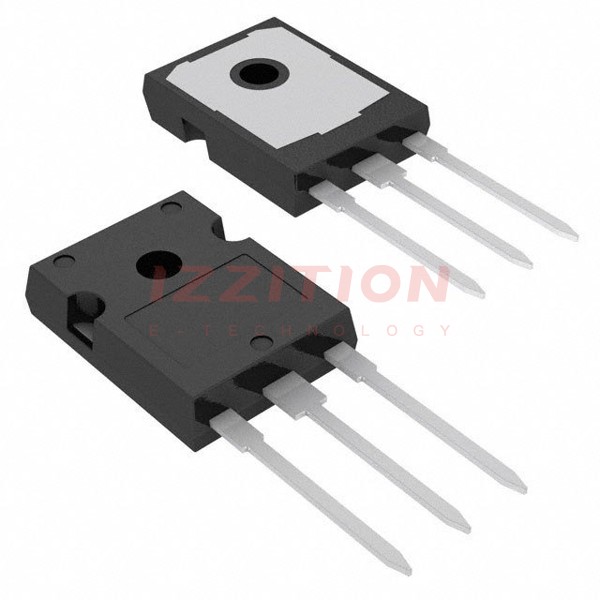

Package / Case:	TO-247-3

NXP USA Inc. PSMN004-55W,127
