NXP USA Inc.-PN2222A,412 - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	NPN
Current - Collector (Ic) (Max):	600 mA
Voltage - Collector Emitter Breakdown (Max):	40 V
Vce Saturation (Max) @ Ib, Ic:	1V @ 50mA, 500mA
Current - Collector Cutoff (Max):	10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	100 @ 150mA, 10V
Power - Max:	500 mW
Frequency - Transition:	300MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole

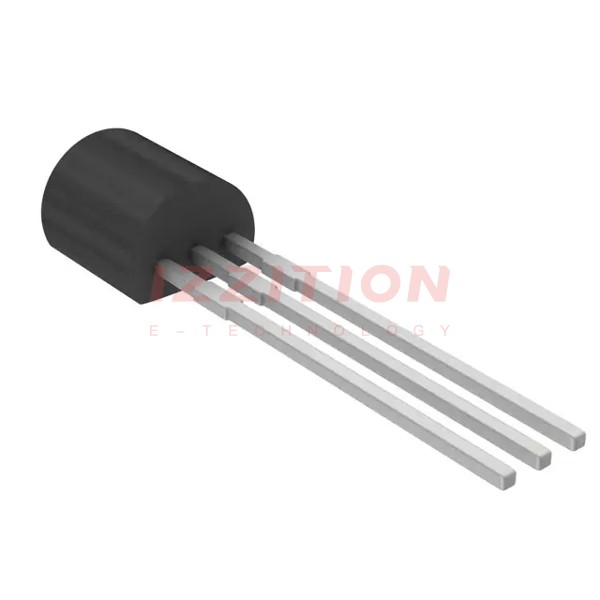

Package / Case:	TO-226-3, TO-92-3 (TO-226AA) Formed Leads
Supplier Device Package:	TO-92-3

NXP USA Inc. PN2222A,412
