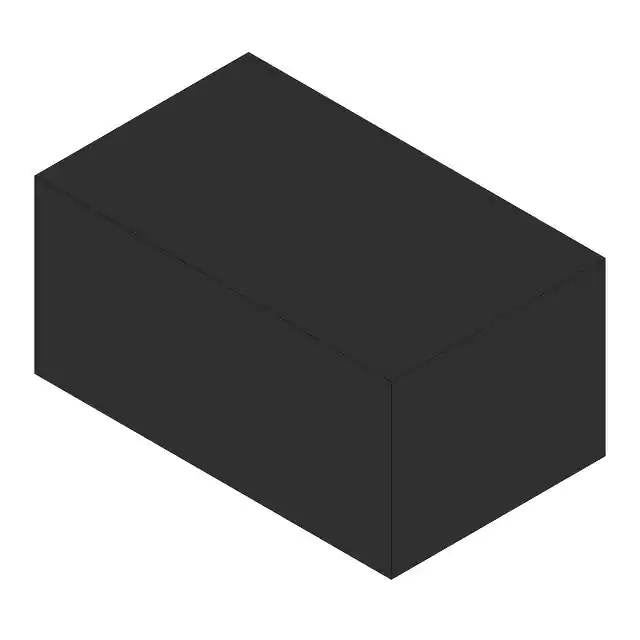

| Part Number | PMZB380XN,315 | PMZB300XN,315 |
|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 930mA (Ta) | 1A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 460mOhm @ 200mA, 4.5V | 380mOhm @ 200mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.87 nC @ 4.5 V | 0.94 nC @ 4.5 V |
| Vgs (Max) | ±12V | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 56 pF @ 25 V | 51 pF @ 20 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 360mW (Ta), 2.7W (Tc) | 360mW (Ta), 2.7W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | DFN1006B-3 | DFN1006B-3 |
| Package / Case | SC-101, SOT-883 | SC-101, SOT-883 |
