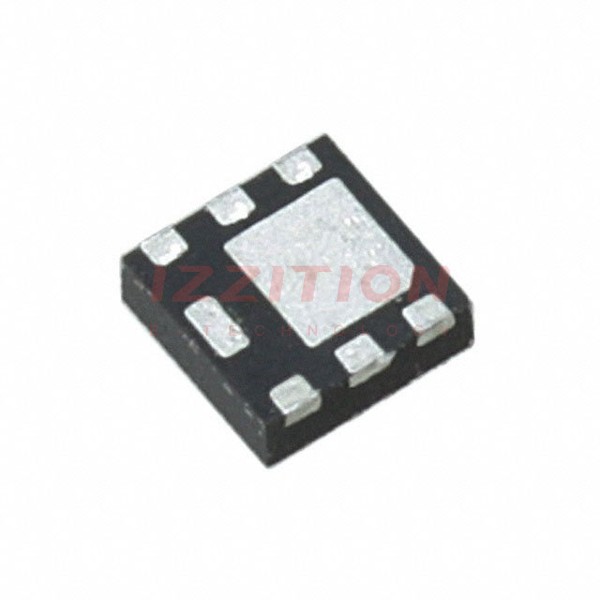

| Part Number | PMPB20UN,115 | PMPB20EN,115 |
|---|---|---|
| Manufacturer | NXP USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 6.6A (Ta) | 7.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 6.6A, 4.5V | 19.5mOhm @ 7A, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 7.1 nC @ 4.5 V | 10.8 nC @ 10 V |
| Vgs (Max) | ±8V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 460 pF @ 10 V | 435 pF @ 10 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 1.7W (Ta), 12.5W (Tc) | 1.7W (Ta), 12.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 6-DFN2020MD (2x2) | DFN2020MD-6 |
| Package / Case | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad |
