Please send RFQ , we will respond immediately.

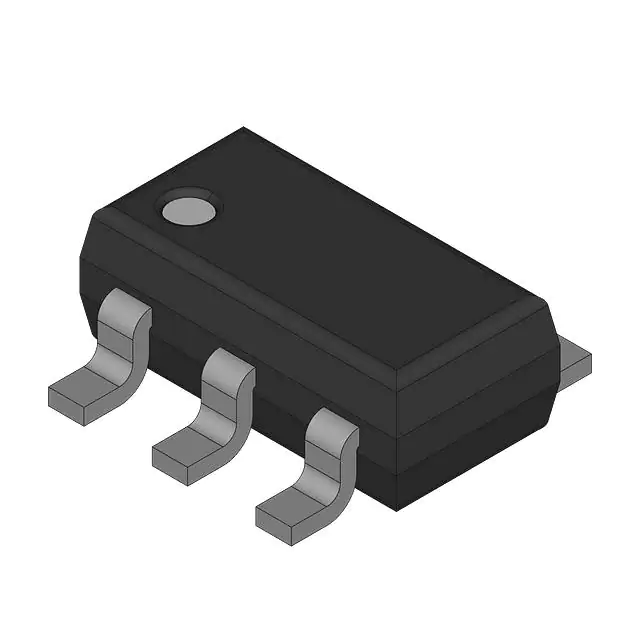

| Part Number | PMN28UN,135 | PMN28UN,165 | PMN23UN,135 | PMN27UN,135 |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V | 12 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 5.7A (Tc) | 5.7A (Tc) | 6.3A (Tc) | 5.7A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | 1.8V, 4.5V | 1.8V, 4.5V | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 34mOhm @ 2A, 4.5V | 34mOhm @ 2A, 4.5V | 28mOhm @ 2A, 4.5V | 34mOhm @ 2A, 4.5V |
| Vgs(th) (Max) @ Id | 700mV @ 1mA (Typ) | 700mV @ 1mA (Typ) | 700mV @ 1mA (Typ) | 700mV @ 1mA (Typ) |
| Gate Charge (Qg) (Max) @ Vgs | 10.1 nC @ 4.5 V | 10.1 nC @ 4.5 V | 10.6 nC @ 4.5 V | 10.6 nC @ 4.5 V |
| Vgs (Max) | ±8V | ±8V | ±8V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 740 pF @ 10 V | 740 pF @ 10 V | 740 pF @ 10 V | 740 pF @ 10 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 1.75W (Tc) | 1.75W (Tc) | 1.75W (Tc) | 1.75W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-TSOP | SC-74 | SC-74 | SC-74 |
| Package / Case | SC-74, SOT-457 | SC-74, SOT-457 | SC-74, SOT-457 | SC-74, SOT-457 |
