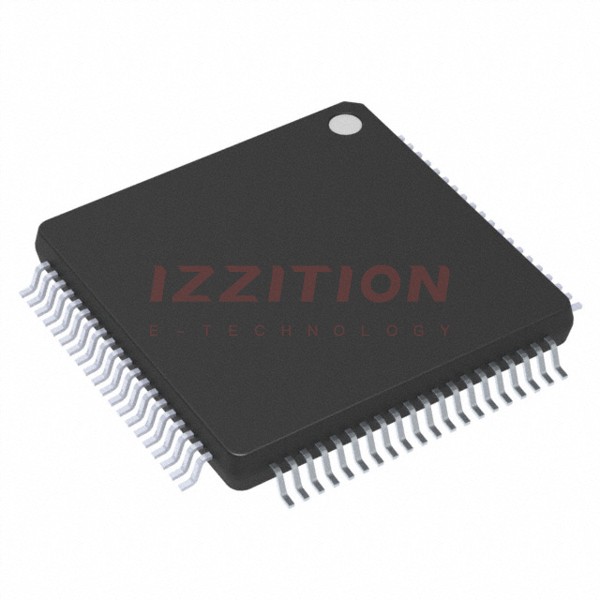

| Part Number | PK30N512VLK100 | PK30N512VLL100 | PK30N512VLQ100 | PK40N512VLK100 | PK10N512VLK100 | PK20N512VLK100 |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz |
| Connectivity | CANbus, I²C, IrDA, SD, SPI, UART/USART | CANbus, I²C, IrDA, SD, SPI, UART/USART | CANbus, EBI/EMI, I²C, IrDA, SD, SPI, UART/USART | CANbus, I²C, IrDA, SD, SPI, UART/USART, USB, USB OTG | CANbus, EBI/EMI, I²C, IrDA, SD, SPI, UART/USART | CANbus, EBI/EMI, I²C, IrDA, SD, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I²S, LCD, LVD, POR, PWM, WDT | DMA, I²S, LCD, LVD, POR, PWM, WDT | DMA, I²S, LCD, LVD, POR, PWM, WDT | DMA, I²S, LCD, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT | DMA, I²S, LVD, POR, PWM, WDT |
| Number of I/O | 56 | 66 | 102 | 52 | 56 | 52 |
| Program Memory Size | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - |
| RAM Size | 128K x 8 | 128K x 8 | 128K x 8 | 128K x 8 | 128K x 8 | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V |
| Data Converters | A/D 22x16b; D/A 1x12b | A/D 24x16b; D/A 1x12b | A/D 31x16b; D/A 2x12b | A/D 20x16b; D/A 1x12b | A/D 27x16b; D/A 1x12b | A/D 33x16b; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 80-LQFP | 100-LQFP | 144-LQFP | 80-LQFP | 80-LQFP | 80-LQFP |
| Supplier Device Package | 80-FQFP (12x12) | 100-LQFP (14x14) | 144-LQFP (20x20) | 80-FQFP (12x12) | 80-FQFP (12x12) | 80-FQFP (12x12) |
