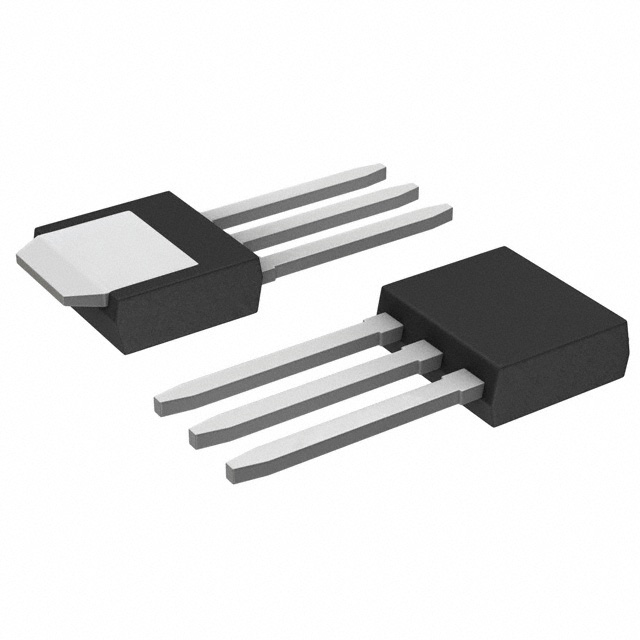

| Part Number | PHU78NQ03LT,127 | PHP78NQ03LT,127 |
|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 75A (Tc) | 75A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V | 5V, 10V |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 25A, 10V | 9mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 1mA | 2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 11 nC @ 4.5 V | 13 nC @ 5 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 970 pF @ 12 V | 1074 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 107W (Tc) | 93W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | I-PAK | TO-220AB |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | TO-220-3 |
