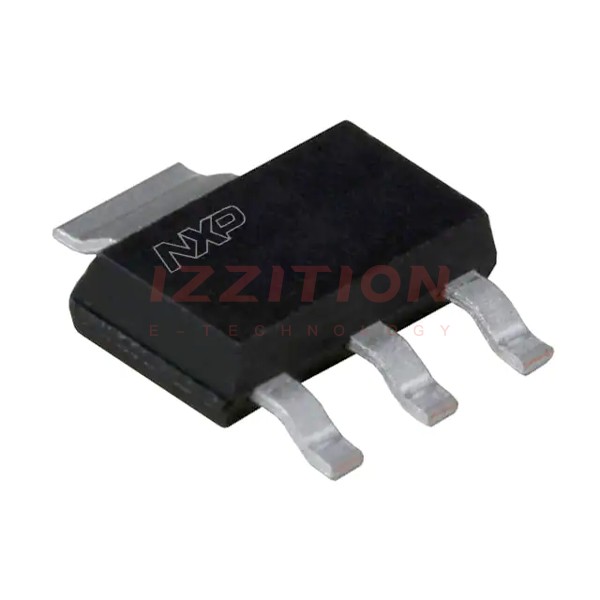

| Part Number | PHT8N06LT,135 | PHT6N06LT,135 |
|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55 V | 55 V |
| Current - Continuous Drain (Id) @ 25°C | 3.5A (Ta) | 2.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V | 5V |
| Rds On (Max) @ Id, Vgs | 80mOhm @ 5A, 5V | 150mOhm @ 5A, 5V |
| Vgs(th) (Max) @ Id | 2V @ 1mA | 2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 11.2 nC @ 5 V | 4.5 nC @ 5 V |
| Vgs (Max) | ±13V | ±13V |
| Input Capacitance (Ciss) (Max) @ Vds | 650 pF @ 25 V | 330 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 1.8W (Ta), 8.3W (Tc) | 1.8W (Ta), 8.3W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | SC-73 | SC-73 |
| Package / Case | TO-261-4, TO-261AA | TO-261-4, TO-261AA |
