Please send RFQ , we will respond immediately.

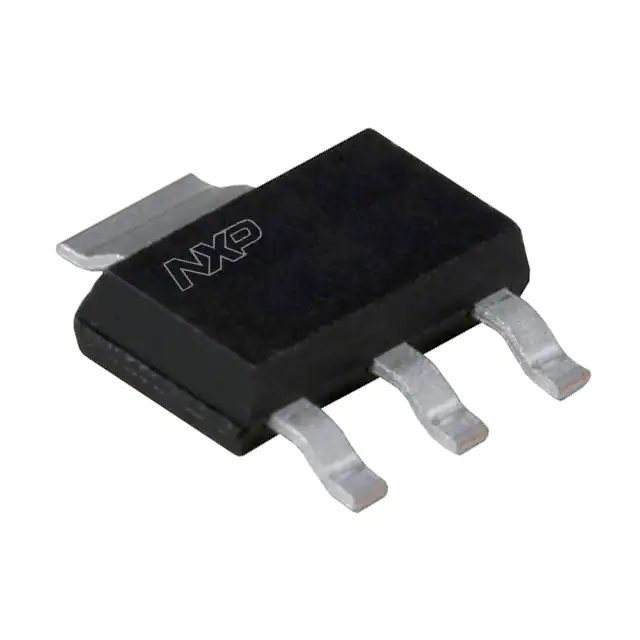

| Part Number | PHT2NQ10T,135 | PHT6NQ10T,135 | PHT4NQ10T,135 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 2.5A (Tc) | 3A (Ta) | 3.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 430mOhm @ 1.75A, 10V | 90mOhm @ 3A, 10V | 250mOhm @ 1.75A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA | 4V @ 1mA | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 5.1 nC @ 10 V | 21 nC @ 10 V | 7.4 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 160 pF @ 25 V | 633 pF @ 25 V | 300 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 6.25W (Tc) | 1.8W (Ta), 8.3W (Tc) | 6.9W (Tc) |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SC-73 | SOT-223 | SOT-223 |
| Package / Case | TO-261-4, TO-261AA | TO-261-4, TO-261AA | TO-261-4, TO-261AA |
