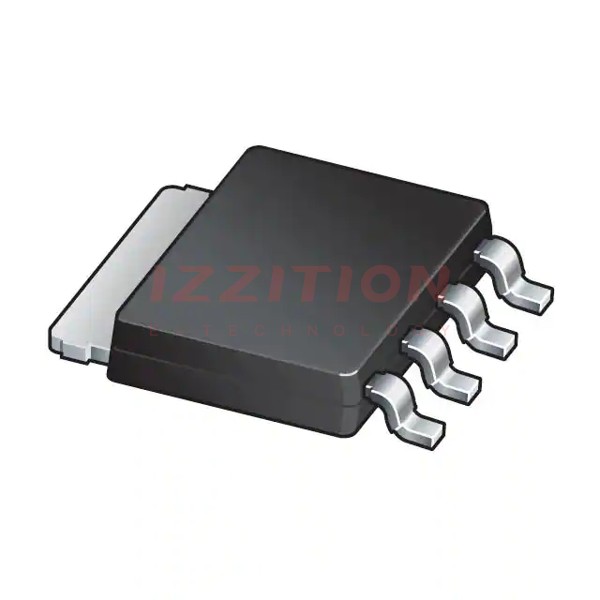

| Part Number | PH9030L,115 | PH9930L,115 | PH6030L,115 | PH7030L,115 | PH8030L,115 | PH9030AL,115 |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 63A (Tc) | 63A (Tc) | 76.7A (Tc) | 68A (Tc) | 76.7A (Tc) | 61A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | - |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 25A, 10V | 9.9mOhm @ 25A, 10V | 6mOhm @ 25A, 10V | 7.9mOhm @ 10A, 10V | 5.9mOhm @ 25A, 10V | 8mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 1mA | 2.15V @ 1mA | 2.15V @ 1mA | 2V @ 1mA | 2.15V @ 1mA | 2.15V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 13.3 nC @ 4.5 V | 13.3 nC @ 4.5 V | 15.2 nC @ 4.5 V | 12 nC @ 5 V | 15.2 nC @ 4.5 V | 17.8 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 1565 pF @ 12 V | 1565 pF @ 12 V | 2260 pF @ 12 V | 1362 pF @ 10 V | 2260 pF @ 12 V | 1006 pF @ 12 V |
| FET Feature | - | - | - | - | - | - |
| Power Dissipation (Max) | 62.5W (Tc) | 62.5W (Tc) | 62.5W (Tc) | 62.5W (Tc) | 62.5W (Tc) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | LFPAK56, Power-SO8 | LFPAK56, Power-SO8 | LFPAK56, Power-SO8 | LFPAK56, Power-SO8 | LFPAK56, Power-SO8 | LFPAK56, Power-SO8 |
| Package / Case | SC-100, SOT-669 | SC-100, SOT-669 | SC-100, SOT-669 | SC-100, SOT-669 | SC-100, SOT-669 | SC-100, SOT-669 |
