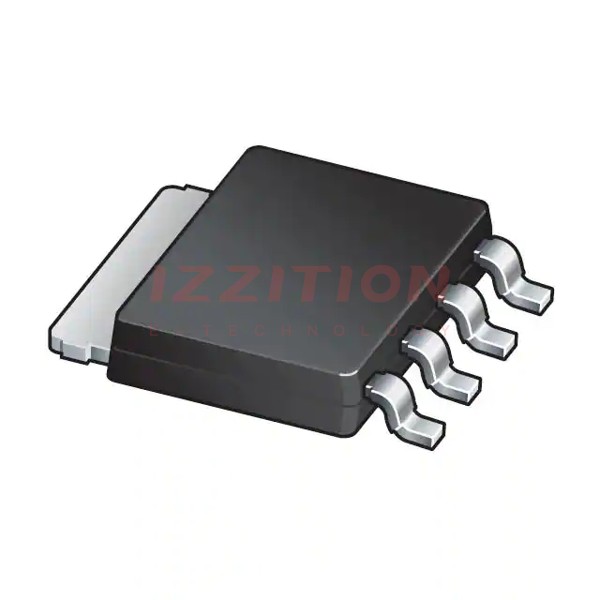

| Part Number | PH3830L,115 | PH4830L,115 | PH3330L,115 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 98A (Tc) | 84A (Tc) | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.8mOhm @ 25A, 10V | 4.8mOhm @ 25A, 10V | 3.3mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 1mA | 2.15V @ 1mA | 2.15V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 33 nC @ 5 V | 22.9 nC @ 4.5 V | 30.5 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3190 pF @ 10 V | 2786 pF @ 12 V | 4840 pF @ 12 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 62.5W (Tc) | 62.5W (Tc) | 62.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | LFPAK56, Power-SO8 | LFPAK56, Power-SO8 | LFPAK56, Power-SO8 |
| Package / Case | SC-100, SOT-669 | SC-100, SOT-669 | SC-100, SOT-669 |
