Please send RFQ , we will respond immediately.

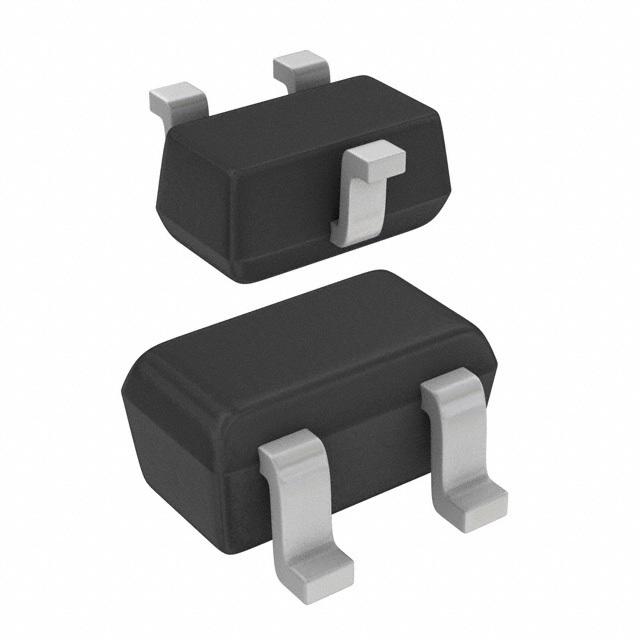

| Part Number | PDTC144WE,115 | PDTC144WU,115 | PDTC144WK,115 | PDTC144EE,115 | PDTC144TE,115 | PDTC144VE,115 |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Nexperia USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V |
| Resistor - Base (R1) | 47 kOhms | 47 kOhms | 47 kOhms | 47 kOhms | 47 kOhms | 47 kOhms |
| Resistor - Emitter Base (R2) | 22 kOhms | 22 kOhms | 22 kOhms | 47 kOhms | - | 10 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 5mA, 5V | 60 @ 5mA, 5V | 60 @ 5mA, 5V | 80 @ 5mA, 5V | 100 @ 1mA, 5V | 40 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 1µA | 1µA | 1µA | 1µA | 1µA | 1µA |
| Frequency - Transition | - | - | - | - | - | - |
| Power - Max | 150 mW | 200 mW | 250 mW | 150 mW | 150 mW | 150 mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-75, SOT-416 | SC-70, SOT-323 | TO-236-3, SC-59, SOT-23-3 | SC-75, SOT-416 | SC-75, SOT-416 | SC-75, SOT-416 |
| Supplier Device Package | SC-75 | SOT-323 | SMT3; MPAK | SC-75 | SC-75 | SC-75 |
