Please send RFQ , we will respond immediately.

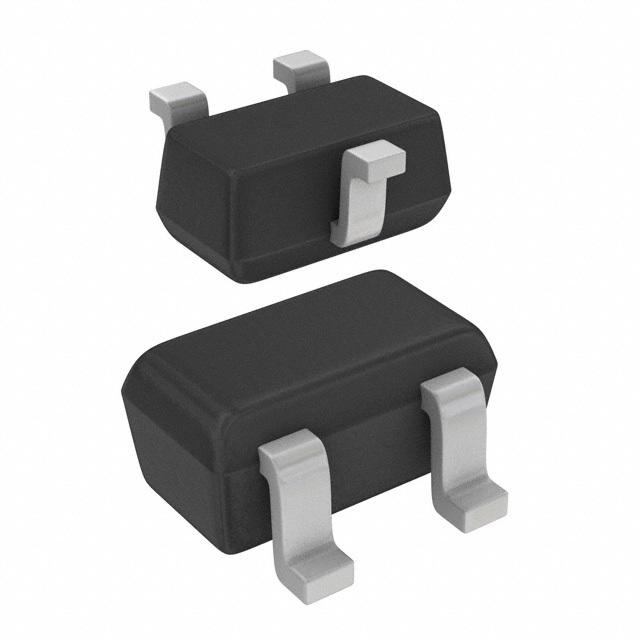

| Part Number | PDTA144TE,115 | PDTA144TE115 | PDTA144TU,115 | PDTA144VE,115 | PDTA144WE,115 | PDTA144TK,115 | PDTA124TE,115 | PDTA143TE,115 | PDTA144EE,115 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | Nexperia USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | PNP - Pre-Biased | - | PNP - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA | - | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | - | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V |
| Resistor - Base (R1) | 47 kOhms | - | 47 kOhms | 47 kOhms | 47 kOhms | 47 kOhms | 22 kOhms | 4.7 kOhms | 47 kOhms |
| Resistor - Emitter Base (R2) | - | - | - | 10 kOhms | 22 kOhms | - | - | - | 47 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1mA, 5V | - | 100 @ 1mA, 5V | 40 @ 5mA, 5V | 60 @ 5mA, 5V | 100 @ 1mA, 5V | 100 @ 1mA, 5V | 200 @ 1mA, 5V | 80 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500µA, 10mA | - | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 250µA, 5mA | 150mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 1µA | - | 1µA | 1µA | 1µA | 1µA | 1µA | 100nA (ICBO) | 100nA (ICBO) |
| Frequency - Transition | - | - | - | - | - | - | - | - | - |
| Power - Max | 150 mW | - | 200 mW | 150 mW | 150 mW | 250 mW | 150 mW | 150 mW | 150 mW |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-75, SOT-416 | - | SC-70, SOT-323 | SC-75, SOT-416 | SC-75, SOT-416 | TO-236-3, SC-59, SOT-23-3 | SC-75, SOT-416 | SC-75, SOT-416 | SC-75, SOT-416 |
| Supplier Device Package | SC-75 | - | SOT-323 | SC-75 | SC-75 | SMT3; MPAK | SC-75 | SC-75 | SC-75 |
