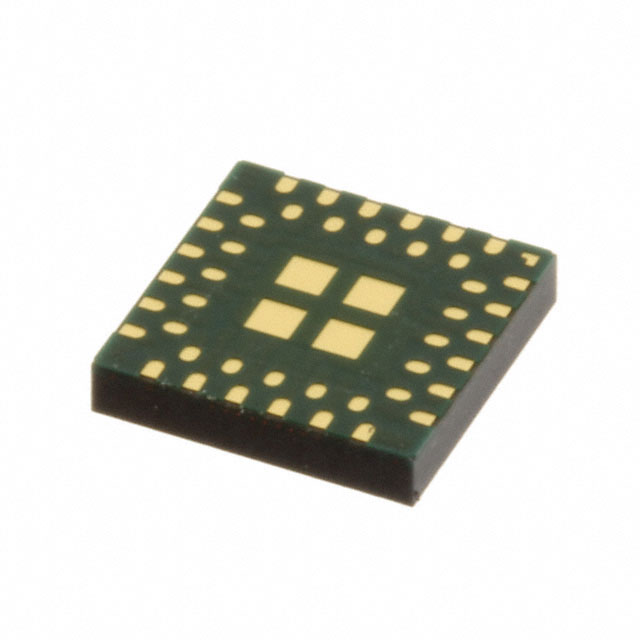

| Part Number | PCF51JU128VHS | PCF51QU128VHS | PCF51JF128VHS |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Core Processor | Coldfire V1 | Coldfire V1 | Coldfire V1 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 50MHz | 50MHz | 50MHz |
| Connectivity | EBI/EMI, I²C, SPI, UART/USART, USB OTG | EBI/EMI, I²C, SPI, UART/USART | EBI/EMI, I²C, SPI, UART/USART, USB OTG |
| Peripherals | DMA, I²S, LVD, POR, PWM | DMA, LVD, POR, PWM | DMA, I²S, LVD, POR, PWM |
| Number of I/O | 31 | 31 | 31 |
| Program Memory Size | 128KB (128K x 8) | 128KB (128K x 8) | 128KB (128K x 8) |
| Program Memory Type | Flash | Flash | Flash |
| EEPROM Size | - | - | - |
| RAM Size | 32K x 8 | 32K x 8 | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V |
| Data Converters | A/D 9x12b; D/A 1x12b | A/D 11x12b; D/A 1x12b | A/D 9x12b; D/A 1x12b |
| Oscillator Type | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 44-VFLGA Exposed Pad | 44-VFLGA Exposed Pad | 44-VFLGA Exposed Pad |
| Supplier Device Package | 44-MAPLGA (5x5) | 44-MAPLGA (5x5) | 44-MAPLGA (5x5) |
