| Part Number | PCA9412AUKZ | PCA9412UKZ | PCA9410AUKZ | PCA9411AUKZ |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Obsolete | Active | Active |
| Function | Step-Up | Step-Up | Step-Up | Step-Up |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Boost | Boost | Boost | Boost |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.5V | 2.5V | 2.5V | 2.5V |
| Voltage - Input (Max) | 5.25V | 5.25V | 5.25V | 5.25V |
| Voltage - Output (Min/Fixed) | 5.4V | 5.4V | 5V | 5.25V |
| Voltage - Output (Max) | 5.56V | 5.56V | - | - |
| Current - Output | 300mA | 300mA | 500mA | 500mA |
| Frequency - Switching | 3MHz | 3MHz | 3MHz | 3MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

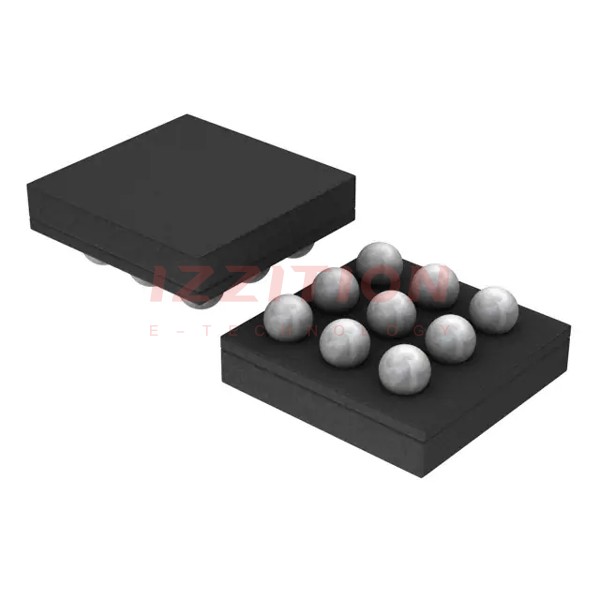

| Package / Case | 9-UFBGA | 9-UFBGA | 9-UFBGA, WLCSP | 9-UFBGA, WLCSP |
| Supplier Device Package | 9-WLCSP (1.24x1.24) | 9-WLCSP (1.24x1.24) | 9-WLCSP (1.24x1.24) | 9-WLCSP (1.24x1.24) |
