| Part Number | PBSS4160PAN,115 | PBSS4260PAN,115 | PBSS4160PANP,115 | PBSS4130PAN,115 |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| Transistor Type | 2 NPN (Dual) | 2 NPN (Dual) | NPN, PNP | 2 NPN (Dual) |
| Current - Collector (Ic) (Max) | 1A | 2A | 1A | 1A |
| Voltage - Collector Emitter Breakdown (Max) | 60V | 60V | 60V | 30V |
| Vce Saturation (Max) @ Ib, Ic | 120mV @ 50mA, 500mA | 90mV @ 50mA, 500mA | 120mV @ 50mA, 500mA | 100mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 150 @ 500mA, 2V | 120 @ 1A, 2V | 150 @ 500mA, 2V | 210 @ 500mA, 2V |
| Power - Max | 510mW | 510mW | 510mW | 510mW |
| Frequency - Transition | 175MHz | 140MHz | 175MHz | 165MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

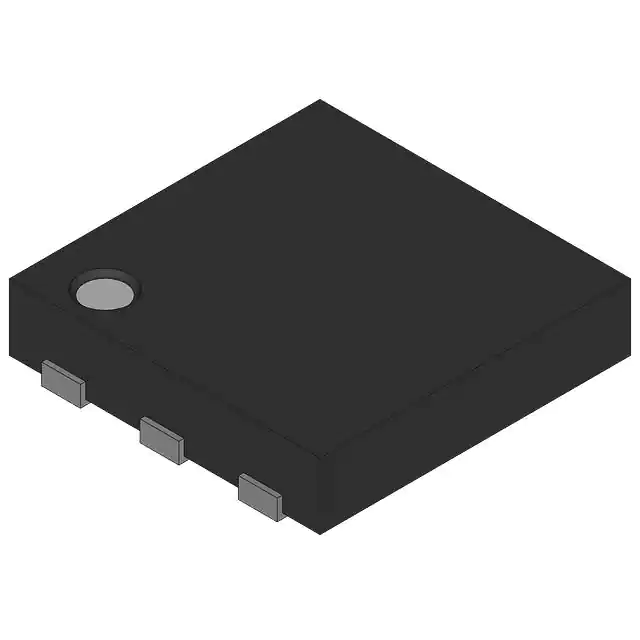

| Package / Case | 6-UFDFN Exposed Pad | 6-UFDFN Exposed Pad | 6-UFDFN Exposed Pad | 6-UFDFN Exposed Pad |
| Supplier Device Package | 6-HUSON (2x2) | 6-HUSON (2x2) | 6-HUSON (2x2) | 6-HUSON (2x2) |
