| Part Number | PBSS3515E,115 | PBSS3515E,135 | PBSS2515E,115 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | PNP | PNP | NPN |
| Current - Collector (Ic) (Max) | 500 mA | 500 mA | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 15 V | 15 V | 15 V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 50mA, 500mA | 250mV @ 50mA, 500mA | 250mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 150 @ 100mA, 2V | 150 @ 100mA, 2V | 150 @ 100mA, 2V |
| Power - Max | 250 mW | 250 mW | 250 mW |
| Frequency - Transition | 280MHz | 280MHz | 420MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

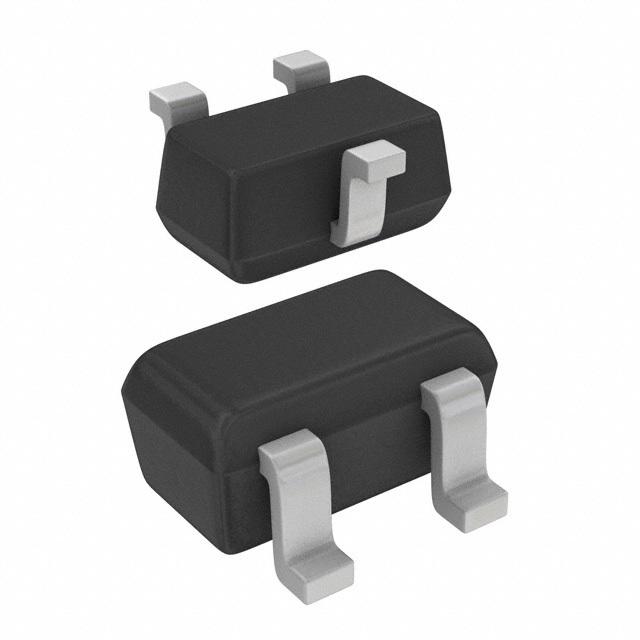

| Package / Case | SC-75, SOT-416 | SC-75, SOT-416 | SC-75, SOT-416 |
| Supplier Device Package | SC-75 | SC-75 | SC-75 |
