PBLS1503V,115-NXP
  • Share:

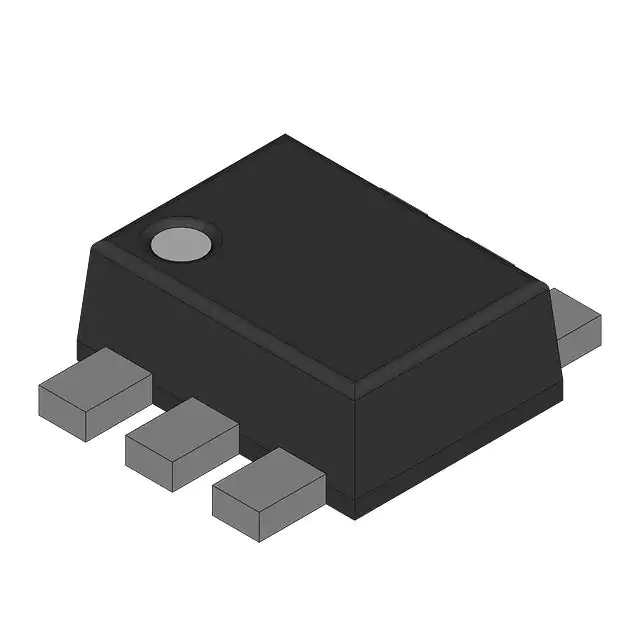

NXP USA Inc. PBLS1503V,115-NXP

Manufacturer No:
PBLS1503V,115-NXP
Manufacturer:
NXP USA Inc.
Package:
Bulk
Datasheet:
PBLS1503V,115-NXP Datasheet
ECAD Model:
-
Description:
0.1A 50V 2-ELEMENT NPN AND PNP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Transistor Type:1 NPN Pre-Biased, 1 PNP
Current - Collector (Ic) (Max):100mA, 500mA
Voltage - Collector Emitter Breakdown (Max):50V, 15V
Resistor - Base (R1):10kOhms
Resistor - Emitter Base (R2):10kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:30 @ 5mA, 5V, 200 @ 10mA, 2V
Vce Saturation (Max) @ Ib, Ic:150mV @ 500µA, 10mA, 250mV @ 50mA, 500mA
Current - Collector Cutoff (Max):1µA, 100nA
Frequency - Transition:280MHz
Power - Max:300mW
Mounting Type:Surface Mount
Package / Case:SOT-563, SOT-666
Supplier Device Package:SOT-666
0 Remaining View Similar

In Stock

$0.07
3,761

Please send RFQ , we will respond immediately.
