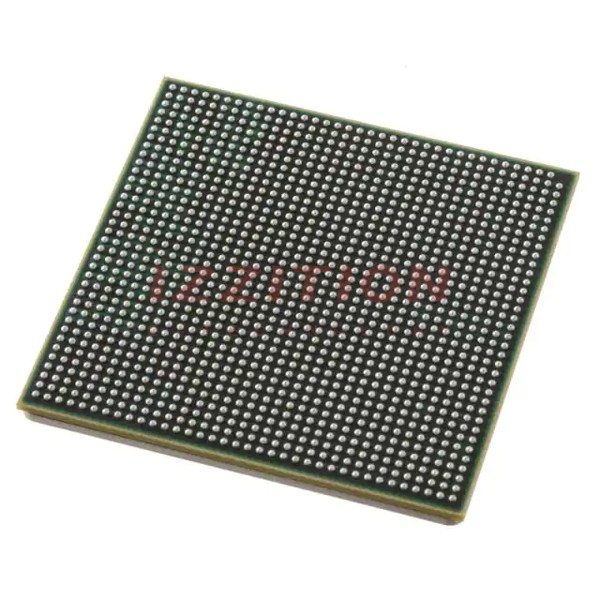

| Part Number | P5020NSN7TNB | P5020NSN7VNB | P5020NXN7TNB | P5010NSN7TNB | P5020NSN1TNB |
|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | Freescale Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Core Processor | PowerPC e5500 | PowerPC e5500 | PowerPC e5500 | PowerPC e5500 | PowerPC e5500 |
| Number of Cores/Bus Width | 2 Core, 64-Bit | 2 Core, 64-Bit | 2 Core, 64-Bit | 1 Core, 64-Bit | 2 Core, 64-Bit |
| Speed | 2.0GHz | 2.0GHz | 2.0GHz | 2.0GHz | 2.0GHz |
| Co-Processors/DSP | - | - | - | - | - |
| RAM Controllers | DDR3, DDR3L | DDR3, DDR3L | DDR3, DDR3L | DDR3, DDR3L | DDR3, DDR3L |
| Graphics Acceleration | No | No | No | No | No |
| Display & Interface Controllers | - | - | - | - | - |
| Ethernet | 1Gbps (5), 10Gbps (1) | 1Gbps (5), 10Gbps (1) | 1Gbps (5), 10Gbps (1) | 1Gbps (5), 10Gbps (1) | 1Gbps (5), 10Gbps (1) |
| SATA | SATA 3Gbps (2) | SATA 3Gbps (2) | SATA 3Gbps (2) | SATA 3Gbps (2) | SATA 3Gbps (2) |
| USB | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) |
| Voltage - I/O | - | - | - | - | - |
| Operating Temperature | 0°C ~ 105°C (TA) | 0°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | 0°C ~ 105°C (TA) | 0°C ~ 105°C (TA) |
| Security Features | - | - | - | - | - |
| Package / Case | 1295-BBGA, FCBGA | 1295-BBGA, FCBGA | 1295-BBGA, FCBGA | 1295-BBGA, FCBGA | 1295-BBGA, FCBGA |
| Supplier Device Package | 1295-FCPBGA (37.5x37.5) | 1295-FCPBGA (37.5x37.5) | 1295-FCPBGA (37.5x37.5) | 1295-FCPBGA (37.5x37.5) | 1295-FCPBGA (37.5x37.5) |
