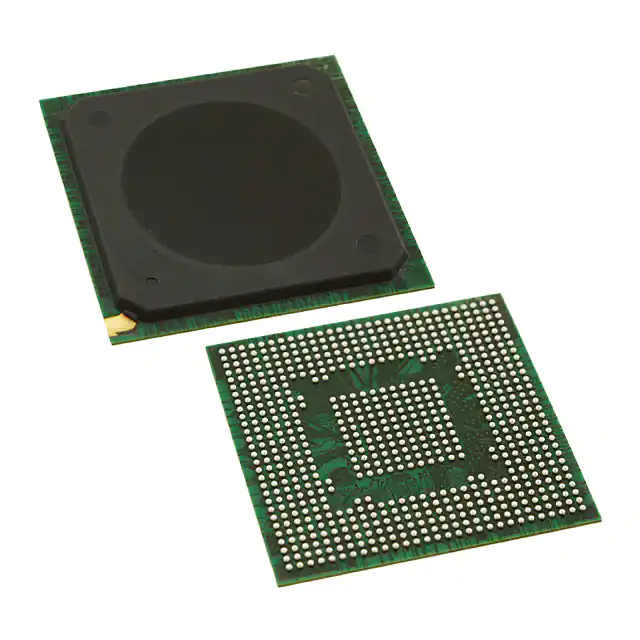

| Part Number | P1011NSN2FFB | P1011NSN2HFB | P1011NXN2FFB | P1012NSN2FFB | P1021NSN2FFB | P1011NSE2FFB | P1011NSN2DFB |
|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | PowerPC e500v2 | PowerPC e500v2 | PowerPC e500v2 | PowerPC e500v2 | PowerPC e500v2 | PowerPC e500v2 | PowerPC e500v2 |
| Number of Cores/Bus Width | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 2 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit |
| Speed | 800MHz | 800MHz | 800MHz | 800MHz | 800MHz | 800MHz | 800MHz |
| Co-Processors/DSP | - | - | - | Communications; QUICC Engine | Communications; QUICC Engine | Security; SEC 3.3 | - |
| RAM Controllers | DDR2, DDR3 | DDR2, DDR3 | DDR2, DDR3 | DDR2, DDR3 | DDR2, DDR3 | DDR2, DDR3 | DDR2, DDR3 |
| Graphics Acceleration | No | No | No | No | No | No | No |
| Display & Interface Controllers | - | - | - | - | - | - | - |
| Ethernet | 10/100/1000Mbps (3) | 10/100/1000Mbps (3) | 10/100/1000Mbps (3) | 10/100/1000Mbps (3) | 10/100/1000Mbps (3) | 10/100/1000Mbps (3) | 10/100/1000Mbps (3) |
| SATA | - | - | - | - | - | - | - |
| USB | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) |
| Voltage - I/O | - | - | - | - | - | - | - |
| Operating Temperature | 0°C ~ 125°C (TA) | 0°C ~ 125°C (TA) | -40°C ~ 105°C (TA) | 0°C ~ 125°C (TA) | 0°C ~ 125°C (TA) | 0°C ~ 125°C (TA) | 0°C ~ 125°C (TA) |
| Security Features | - | - | - | - | - | Cryptography, Random Number Generator | - |
| Package / Case | 689-BBGA Exposed Pad | 689-BBGA Exposed Pad | 689-BBGA Exposed Pad | 689-BBGA Exposed Pad | 689-BBGA Exposed Pad | 689-BBGA Exposed Pad | 689-BBGA Exposed Pad |
| Supplier Device Package | 689-TEPBGA II (31x31) | 689-TEPBGA II (31x31) | 689-TEPBGA II (31x31) | 689-TEPBGA II (31x31) | 689-TEPBGA II (31x31) | 689-TEPBGA II (31x31) | 689-TEPBGA II (31x31) |
