| Part Number | P1010NSN5HHB | P1010NXN5HHB | P1010NSE5HHB |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Core Processor | PowerPC e500v2 | PowerPC e500v2 | PowerPC e500v2 |
| Number of Cores/Bus Width | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit |
| Speed | 1.0GHz | 1.0GHz | 1.0GHz |
| Co-Processors/DSP | - | - | Security; SEC 4.4 |
| RAM Controllers | DDR3, DDR3L | DDR3, DDR3L | DDR3, DDR3L |
| Graphics Acceleration | No | No | No |
| Display & Interface Controllers | - | - | - |
| Ethernet | 10/100/1000Mbps (3) | 10/100/1000Mbps (3) | 10/100/1000Mbps (3) |
| SATA | SATA 3Gbps (2) | SATA 3Gbps (2) | SATA 3Gbps (2) |
| USB | USB 2.0 + PHY (1) | USB 2.0 + PHY (1) | USB 2.0 + PHY (1) |
| Voltage - I/O | - | - | - |
| Operating Temperature | 0°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | 0°C ~ 105°C (TA) |
| Security Features | - | - | Boot Security, Cryptography, Random Number Generator, Secure Fusebox |

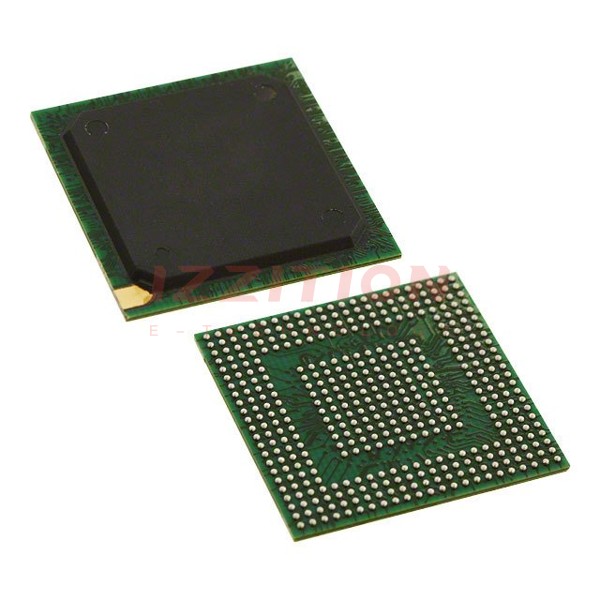

| Package / Case | 425-FBGA | 425-FBGA | 425-FBGA |
| Supplier Device Package | 425-TEPBGA I (19x19) | 425-TEPBGA I (19x19) | 425-TEPBGA I (19x19) |
