| Part Number | NX5P2924BUKZ | NX5P2924UKZ | NX5P2924CUKZ |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel |
| Interface | On/Off | On/Off | On/Off |
| Voltage - Load | 0.8V ~ 5.5V | 0.8V ~ 5.5V | 0.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required |
| Current - Output (Max) | 2.5A | 2.5A | 2.5A |
| Rds On (Typ) | 14mOhm | 14mOhm | 18mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Load Discharge, Slew Rate Controlled | Load Discharge, Slew Rate Controlled | Load Discharge, Slew Rate Controlled |
| Fault Protection | - | - | Reverse Current |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

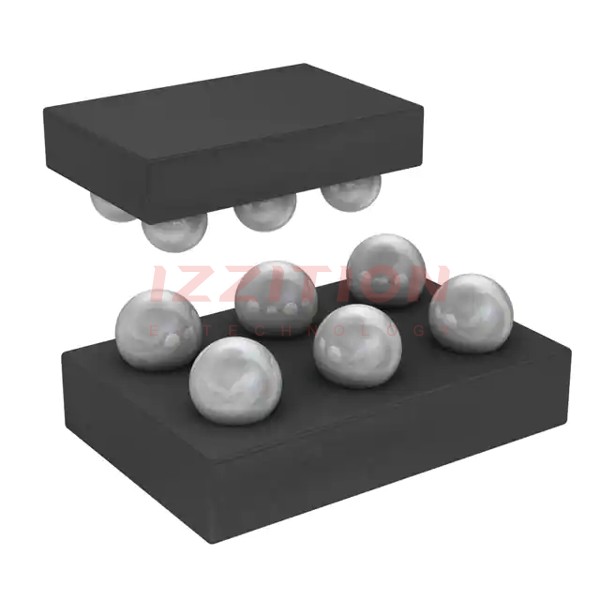

| Supplier Device Package | 6-WLCSP (0.87x1.37) | 6-WLCSP (0.87x1.37) | 6-WLCSP (0.87x1.37) |
| Package / Case | 6-XFBGA, WLCSP | 6-UFBGA, WLCSP | 6-XFBGA, WLCSP |
