| Part Number | NX5P2553GU6Z | NX5P2553GUZ |
|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |
| Interface | On/Off | On/Off |
| Voltage - Load | 2.5V ~ 5.5V | 2.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required |
| Current - Output (Max) | 1.5A | 1.5A |
| Rds On (Typ) | 115mOhm | 100mOhm |
| Input Type | Non-Inverting | Non-Inverting |
| Features | Status Flag | Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO | Current Limiting (Adjustable), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

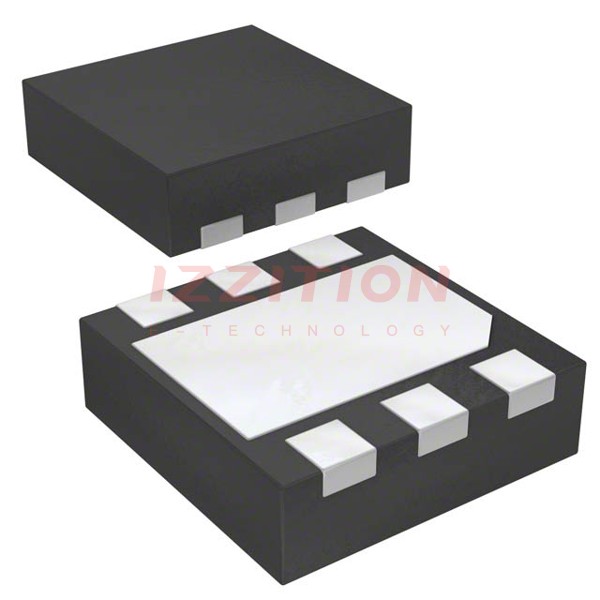

| Supplier Device Package | 6-HXSON (2x2) | 6-HXSON (1.6x1.6) |
| Package / Case | 6-XDFN Exposed Pad | 6-XFDFN Exposed Pad |
