Please send RFQ , we will respond immediately.

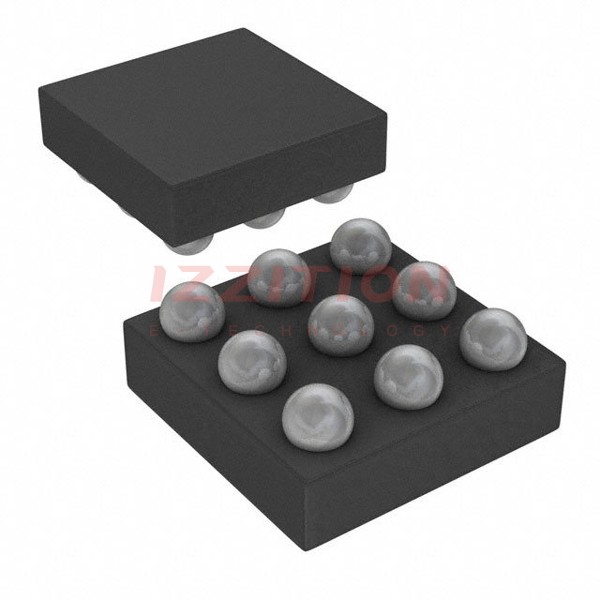

| Part Number | NX5P2090UKZ | NX5P3090UKZ | NX5P2190UKZ |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Active | Obsolete |
| Switch Type | USB Switch | USB Switch | General Purpose |
| Number of Outputs | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side |
| Output Type | N-Channel | - | N-Channel |
| Interface | On/Off | On/Off | On/Off |
| Voltage - Load | 3V ~ 5.5V | 2.5V ~ 5.5V | 3V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required |
| Current - Output (Max) | 2A | 3.3A | 2A |
| Rds On (Typ) | 60mOhm | 34mOhm | 60mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Slew Rate Controlled | Status Flag | Slew Rate Controlled |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 9-WLCSP (1.3x1.3) | 12-WLCSP (1.65x1.35) | 9-WLCSP (1.36x1.36) |
| Package / Case | 9-UFBGA, WLCSP | 12-UFBGA, WLCSP | 9-UFBGA, WLCSP |
