| Part Number | NX3L4053HR-Q100X | NX3L4051HR-Q100X |
|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete |
| Switch Circuit | SPDT | - |
| Multiplexer/Demultiplexer Circuit | 2:1 | 8:1 |
| Number of Circuits | 3 | 1 |
| On-State Resistance (Max) | 800mOhm | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | 120mOhm | 70mOhm |
| Voltage - Supply, Single (V+) | 1.4V ~ 4.3V | 1.4V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 40ns, 20ns | 45ns, 25ns |
| -3db Bandwidth | 60MHz | 15MHz |
| Charge Injection | 15pC | 15pC |
| Channel Capacitance (CS(off), CD(off)) | 35pF | 35pF |
| Current - Leakage (IS(off)) (Max) | 10nA | 10nA |
| Crosstalk | -90dB @ 100kHz | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

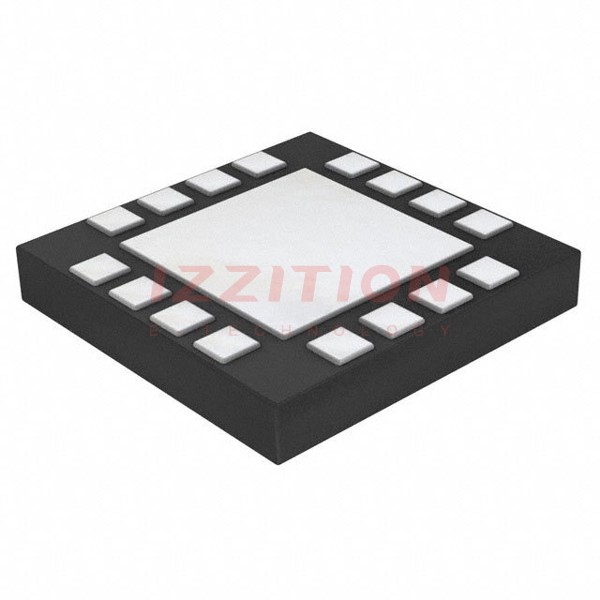

| Package / Case | 16-XFQFN Exposed Pad | 16-XFQFN Exposed Pad |
| Supplier Device Package | 16-HXQFN (3x3) | 16-HXQFN (3x3) |
