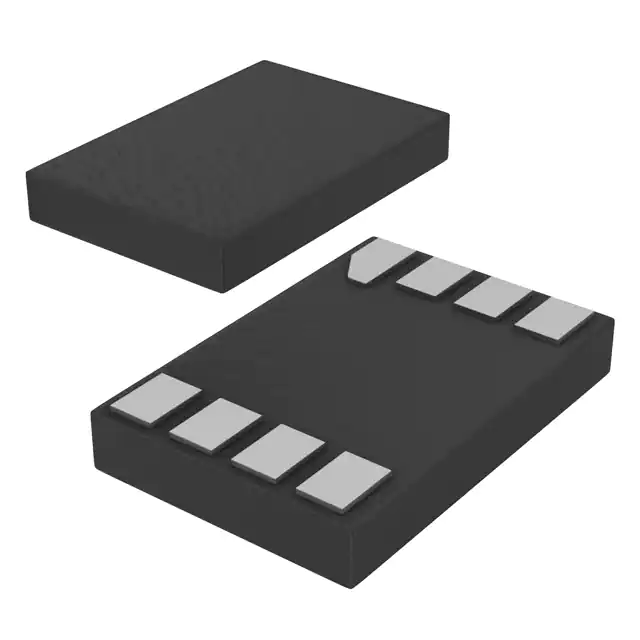

| Part Number | NX3L2G66GD,125 | NX3L2G66GM,125 | NX3L2T66GD,125 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Switch Circuit | SPST - NO | SPST - NO | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 2 | 2 | 2 |
| On-State Resistance (Max) | 750mOhm | 750mOhm | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | 20mOhm | 20mOhm | 20mOhm |
| Voltage - Supply, Single (V+) | 1.4V ~ 4.3V | 1.4V ~ 4.3V | 1.4V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | 23ns, 8ns | 23ns, 8ns | 28ns, 20ns |
| -3db Bandwidth | 60MHz | 60MHz | 60MHz |
| Charge Injection | 6pC | 6pC | 6pC |
| Channel Capacitance (CS(off), CD(off)) | 35pF | 35pF | 35pF |
| Current - Leakage (IS(off)) (Max) | 10nA | 10nA | 10nA |
| Crosstalk | -90dB @ 100kHz | -90dB @ 100kHz | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-XFDFN | 8-XFQFN Exposed Pad | 8-XFDFN |
| Supplier Device Package | 8-XSON, SOT996-2 (2x3) | 8-XQFNU (1.6x1.6) | 8-XSON, SOT996-2 (2x3) |
