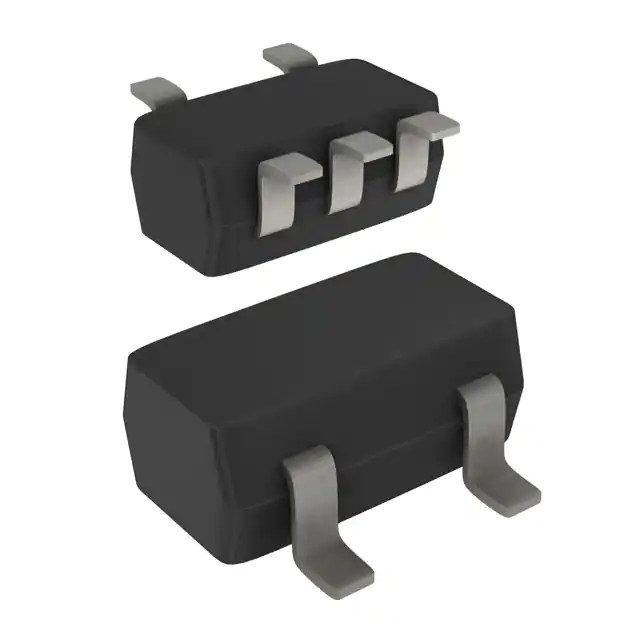

| Part Number | NX3L1G384GW,125 | NX3V1G384GW,125 |
|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete |
| Switch Circuit | SPST - NC | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 |
| Number of Circuits | 1 | 1 |
| On-State Resistance (Max) | 750mOhm | 450mOhm |
| Channel-to-Channel Matching (ΔRon) | - | - |
| Voltage - Supply, Single (V+) | 1.4V ~ 4.3V | 1.4V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 24ns, 7ns | 26ns, 10ns |
| -3db Bandwidth | 60MHz | 25MHz |
| Charge Injection | 6pC | 12pC |
| Channel Capacitance (CS(off), CD(off)) | 35pF | 70pF |
| Current - Leakage (IS(off)) (Max) | 10nA | 10nA |
| Crosstalk | - | - |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | 5-TSSOP | 5-TSSOP |
