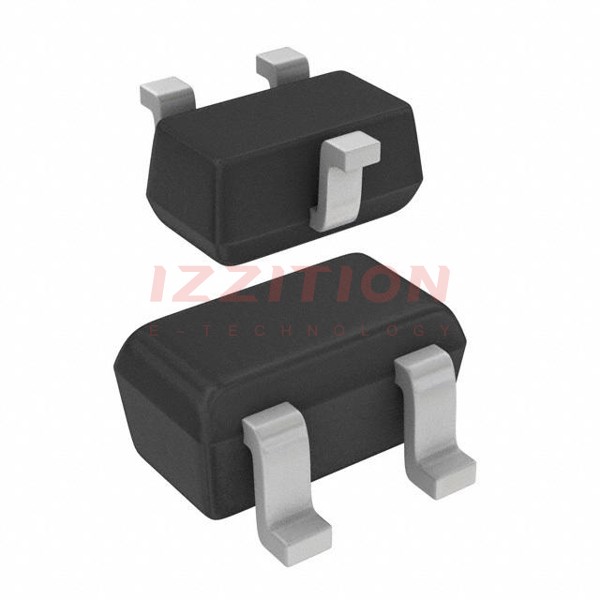

| Part Number | NX3020NAKT,115 | NX3020NAKW,115 |
|---|---|---|
| Manufacturer | NXP USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 180mA (Ta) | 180mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V | 2.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.5Ohm @ 100mA, 10V | 4.5Ohm @ 100mA, 10V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.44 nC @ 4.5 V | 0.44 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 13 pF @ 10 V | 13 pF @ 10 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 230mW (Ta), 1.06W (Tc) | 260mW (Ta), 1.1W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | SC-75 | SOT-323 |
| Package / Case | SC-75, SOT-416 | SC-70, SOT-323 |
