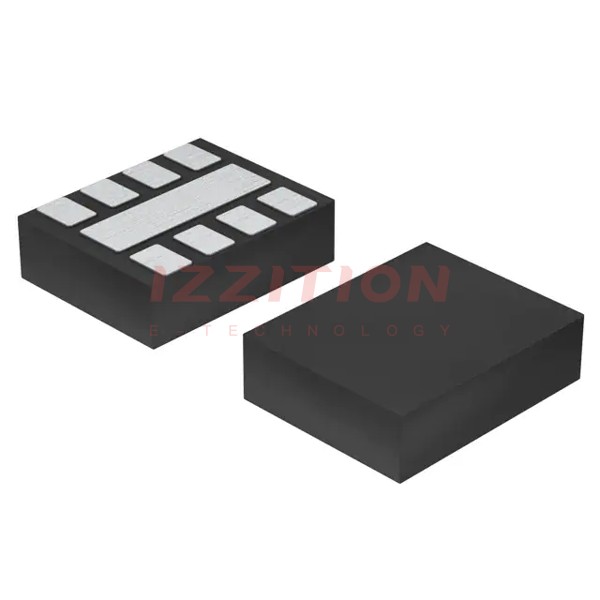

| Part Number | NCX2222GUX | NCX2222GFX | NCX2222GTX |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Not For New Designs |
| Type | General Purpose | General Purpose | General Purpose |
| Number of Elements | 2 | 2 | 2 |
| Output Type | Open Drain | Open Drain | Open Drain |
| Voltage - Supply, Single/Dual (±) | 1.3V ~ 5.5V | 1.3V ~ 5.5V | 1.3V ~ 5.5V |
| Voltage - Input Offset (Max) | 30mV @ 5.5V | 30mV @ 5.5V | 30mV @ 5.5V |
| Current - Input Bias (Max) | 1pA | 1pA | 1pA |
| Current - Output (Typ) | 68mA | 68mA | 68mA |
| Current - Quiescent (Max) | 5µA | 5µA | 5µA |
| CMRR, PSRR (Typ) | 70dB CMRR, 80dB PSRR | 70dB CMRR, 80dB PSRR | 70dB CMRR, 80dB PSRR |
| Propagation Delay (Max) | 0.8µs | 0.8µs | 0.8µs |
| Hysteresis | 9mV | 9mV | 9mV |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 8-XFDFN Exposed Pad | 8-XFDFN | 8-XFDFN |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DFN1714-8 | 8-XSON, SOT1089 (1.35x1) | 8-XSON, SOT833-1 (1.95x1) |
