| Part Number | MSC8154SAG1000B | MSC8154TAG1000B | MSC8156SAG1000B | MSC8151SAG1000B | MSC8152SAG1000B | MSC8154ESAG1000B |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | SC3850 Quad Core | SC3850 Quad Core | SC3850 Six Core | SC3850 Single Core | SC3850 Dual Core | SC3850 Quad Core |
| Interface | Ethernet, I²C, PCI, RGMII, Serial RapidIO, SGMII, SPI, UART/USART | Ethernet, I²C, PCI, RGMII, Serial RapidIO, SGMII, SPI, UART/USART | Ethernet, I²C, PCI, RGMII, Serial RapidIO, SGMII, SPI, UART/USART | Ethernet, I²C, PCI, RGMII, Serial RapidIO, SGMII, SPI, UART/USART | Ethernet, I²C, PCI, RGMII, Serial RapidIO, SGMII, SPI, UART/USART | Ethernet, I²C, PCI, RGMII, Serial RapidIO, SGMII, SPI, UART/USART |
| Clock Rate | 1GHz | 1GHz | 1GHz | 1GHz | 1GHz | 1GHz |
| Non-Volatile Memory | ROM (96kB) | ROM (96kB) | ROM (96kB) | ROM (96kB) | ROM (96kB) | ROM (96kB) |
| On-Chip RAM | 576kB | 576kB | 576kB | 576kB | 576kB | 576kB |
| Voltage - I/O | 2.50V | 2.50V | 2.50V | 2.50V | 2.50V | 2.50V |
| Voltage - Core | 1.00V | 1.00V | 1.00V | 1.00V | 1.00V | 1.00V |
| Operating Temperature | 0°C ~ 105°C (TJ) | -40°C ~ 105°C (TJ) | 0°C ~ 105°C (TJ) | 0°C ~ 105°C (TJ) | 0°C ~ 105°C (TJ) | 0°C ~ 105°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

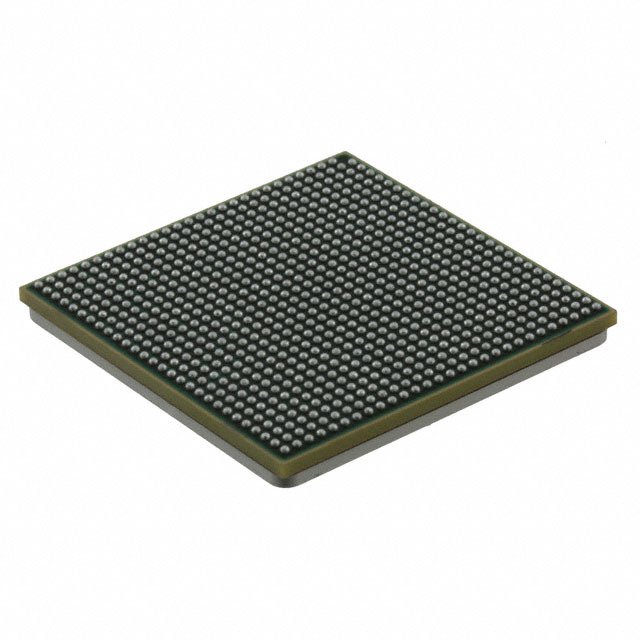

| Package / Case | 783-BBGA, FCBGA | 783-BBGA, FCBGA | 783-BBGA, FCBGA | 783-BBGA, FCBGA | 783-BBGA, FCBGA | 783-BBGA, FCBGA |
| Supplier Device Package | 783-FCPBGA (29x29) | 783-FCPBGA (29x29) | 783-FCPBGA (29x29) | 783-FCPBGA (29x29) | 783-FCPBGA (29x29) | 783-FCPBGA (29x29) |
