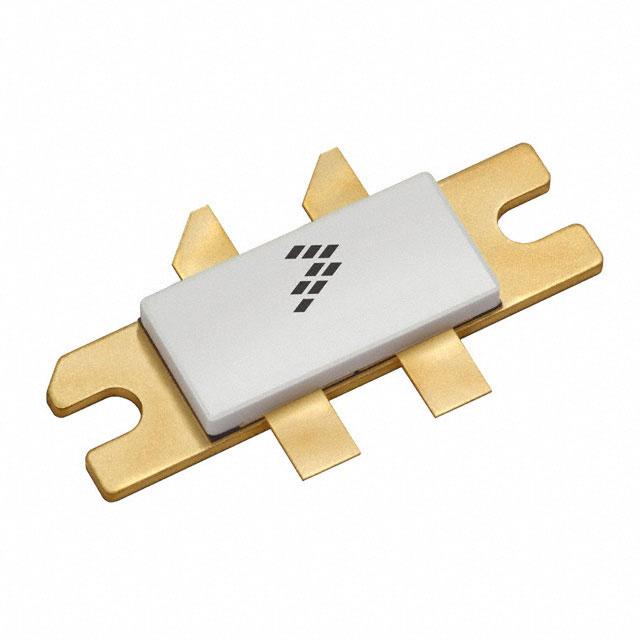

| Part Number | MRF8P20165WHR3 | MRF8P20165WHR5 | MRF8P20165WHSR3 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Discontinued at Digi-Key | Obsolete |
| Transistor Type | LDMOS (Dual) | LDMOS (Dual) | LDMOS (Dual) |
| Frequency | 1.98GHz ~ 2.01GHz | 1.98GHz ~ 2.01GHz | 1.98GHz ~ 2.01GHz |
| Gain | 14.8dB | 14.8dB | 14.8dB |
| Voltage - Test | 28 V | 28 V | 28 V |
| Current Rating (Amps) | - | - | - |
| Noise Figure | - | - | - |
| Current - Test | 550 mA | 550 mA | 550 mA |
| Power - Output | 37W | 37W | 37W |
| Voltage - Rated | 65 V | 65 V | 65 V |
| Package / Case | NI-780-4 | NI-780-4 | NI-780S-4L |
| Supplier Device Package | NI-780-4 | NI-780-4 | NI-780S-4L |
