Please send RFQ , we will respond immediately.

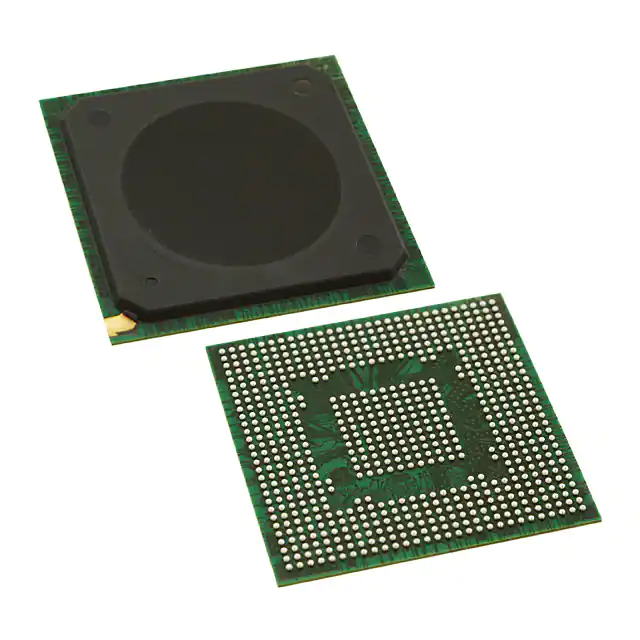

| Part Number | MPC8378EVRALG | MPC8378EVRANG | MPC8378VRALG | MPC8377EVRALG | MPC8378CVRALG | MPC8378ECVRALG |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | PowerPC e300c4s | PowerPC e300c4s | PowerPC e300c4s | PowerPC e300c4s | PowerPC e300c4s | PowerPC e300c4s |
| Number of Cores/Bus Width | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit |
| Speed | 667MHz | 800MHz | 667MHz | 667MHz | 667MHz | 667MHz |
| Co-Processors/DSP | Security; SEC 3.0 | Security; SEC 3.0 | - | Security; SEC 3.0 | - | Security; SEC 3.0 |
| RAM Controllers | DDR, DDR2 | DDR, DDR2 | DDR, DDR2 | DDR, DDR2 | DDR, DDR2 | DDR, DDR2 |
| Graphics Acceleration | No | No | No | No | No | No |
| Display & Interface Controllers | - | - | - | - | - | - |
| Ethernet | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) |
| SATA | - | - | - | SATA 3Gbps (2) | - | - |
| USB | USB 2.0 + PHY (1) | USB 2.0 + PHY (1) | USB 2.0 + PHY (1) | USB 2.0 + PHY (1) | USB 2.0 + PHY (1) | USB 2.0 + PHY (1) |
| Voltage - I/O | 1.8V, 2.5V, 3.3V | 1.8V, 2.5V, 3.3V | 1.8V, 2.5V, 3.3V | 1.8V, 2.5V, 3.3V | 1.8V, 2.5V, 3.3V | 1.8V, 2.5V, 3.3V |
| Operating Temperature | 0°C ~ 125°C (TA) | 0°C ~ 125°C (TA) | 0°C ~ 125°C (TA) | 0°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Security Features | Cryptography, Random Number Generator | Cryptography, Random Number Generator | - | Cryptography, Random Number Generator | - | Cryptography, Random Number Generator |
| Package / Case | 689-BBGA Exposed Pad | 689-BBGA Exposed Pad | 689-BBGA Exposed Pad | 689-BBGA Exposed Pad | 689-BBGA Exposed Pad | 689-BBGA Exposed Pad |
| Supplier Device Package | 689-TEPBGA II (31x31) | 689-TEPBGA II (31x31) | 689-TEPBGA II (31x31) | 689-TEPBGA II (31x31) | 689-TEPBGA II (31x31) | 689-TEPBGA II (31x31) |
