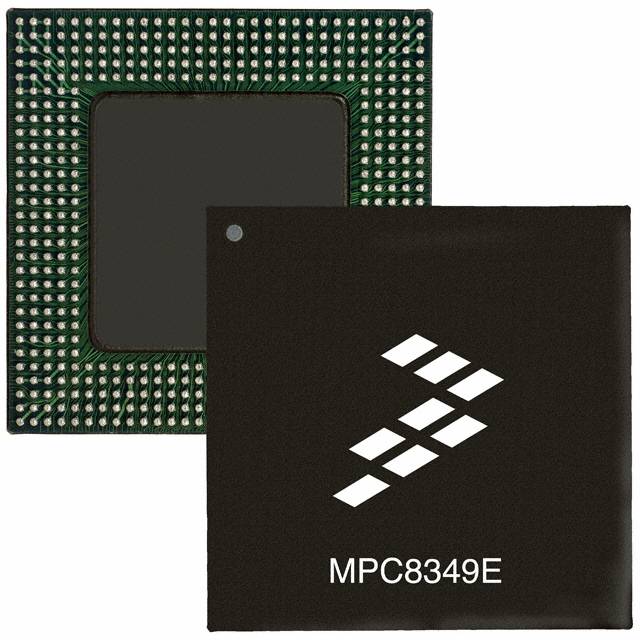

| Part Number | MPC8347ECZUAJFB | MPC8347EZUAJFB | MPC8349ECZUAJFB | MPC8347CZUAJFB | MPC8347ECZUAJDB |
|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | Freescale Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Core Processor | PowerPC e300 | PowerPC e300 | PowerPC e300 | PowerPC e300 | PowerPC e300 |
| Number of Cores/Bus Width | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit |
| Speed | 533MHz | 533MHz | 533MHz | 533MHz | 533MHz |
| Co-Processors/DSP | Security; SEC | Security; SEC | Security; SEC | - | Security; SEC |
| RAM Controllers | DDR | DDR | DDR, DDR2 | DDR | DDR |
| Graphics Acceleration | No | No | No | No | No |
| Display & Interface Controllers | - | - | - | - | - |
| Ethernet | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) |
| SATA | - | - | - | - | - |
| USB | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) |
| Voltage - I/O | 2.5V, 3.3V | 2.5V, 3.3V | 1.8V, 2.5V, 3.3V | 2.5V, 3.3V | 2.5V, 3.3V |
| Operating Temperature | -40°C ~ 105°C (TA) | 0°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Security Features | Cryptography, Random Number Generator | Cryptography, Random Number Generator | Cryptography, Random Number Generator | - | Cryptography, Random Number Generator |
| Package / Case | 672-LBGA | 672-LBGA | 672-LBGA | 672-LBGA | 672-LBGA |
| Supplier Device Package | 672-LBGA (35x35) | 672-LBGA (35x35) | 672-LBGA (35x35) | 672-LBGA (35x35) | 672-TBGA (35x35) |
